High-Intensity Magnetic Liquid Traps

Designed for continuous removal of ferrous and paramagnetic contamination from liquid and semi-liquid process streams within food, beverage, and pharmaceutical production environments. .

Protects pumps, valves and downstream processing equipment
Reduces contamination risk and product recalls
Supports HACCP and GMP systems
Hygienic, crevice-free stainless steel construction
Custom options available on request

Download data sheet Get a Quote

Overview

High-intensity in-line magnetic fluid traps for hygienic liquid processing

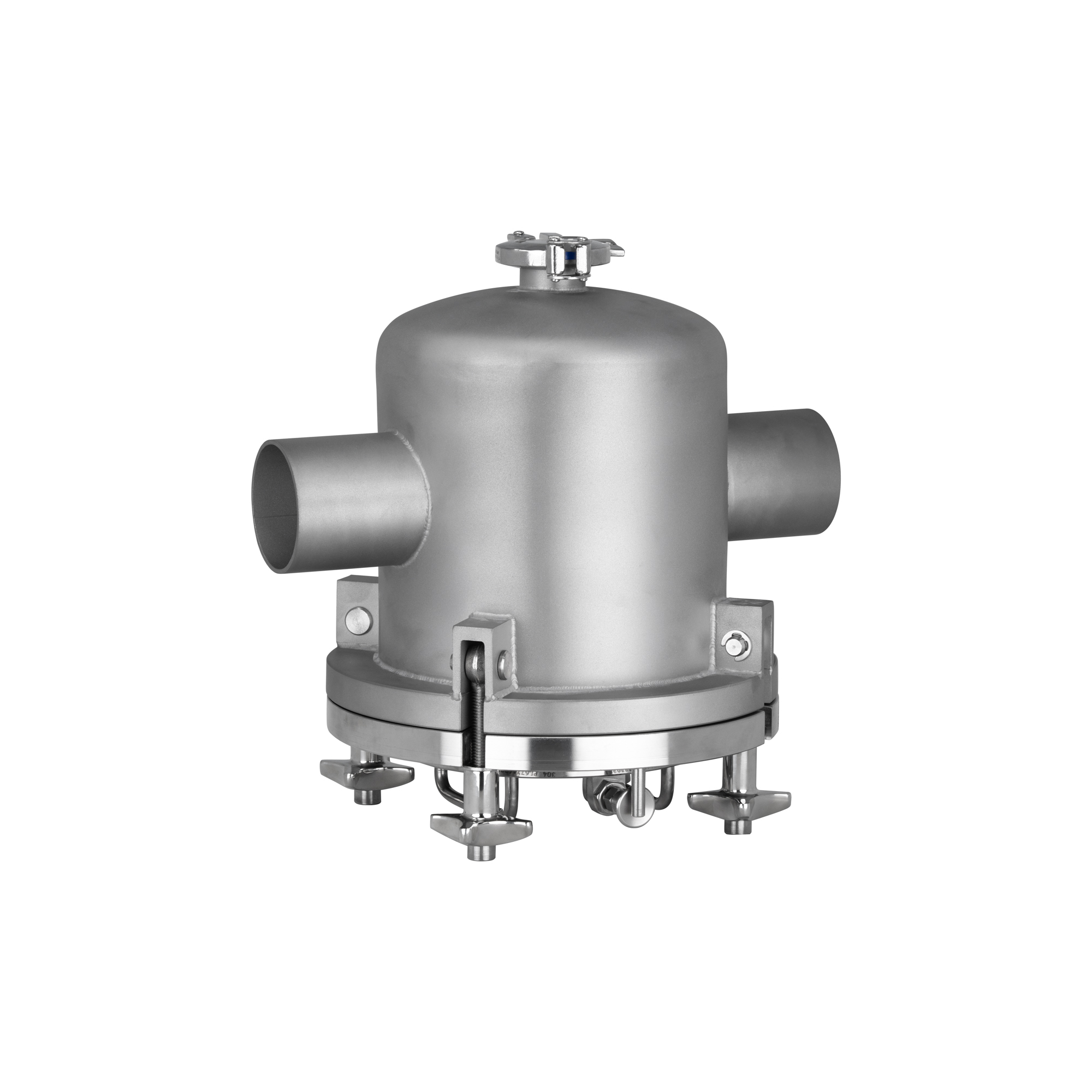

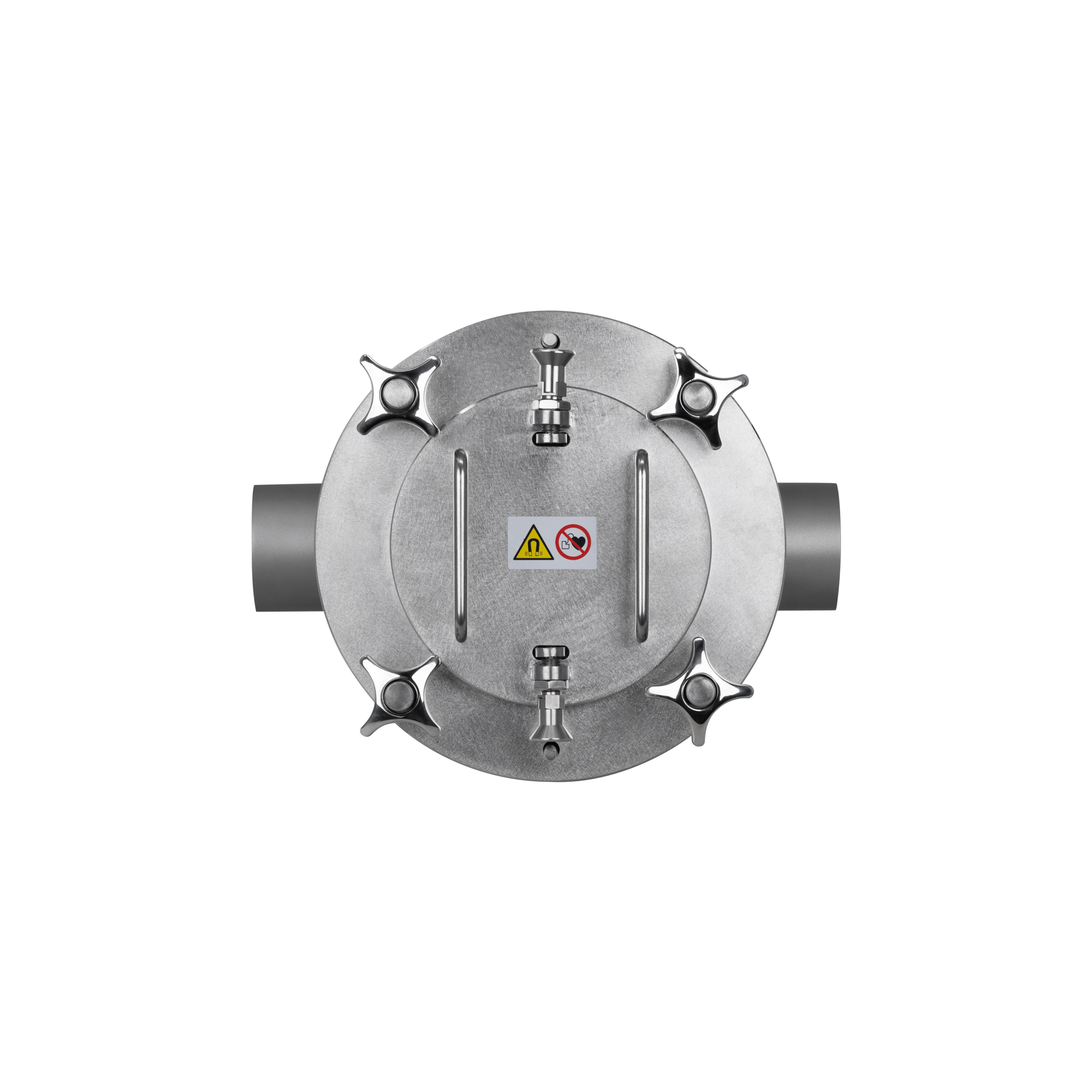

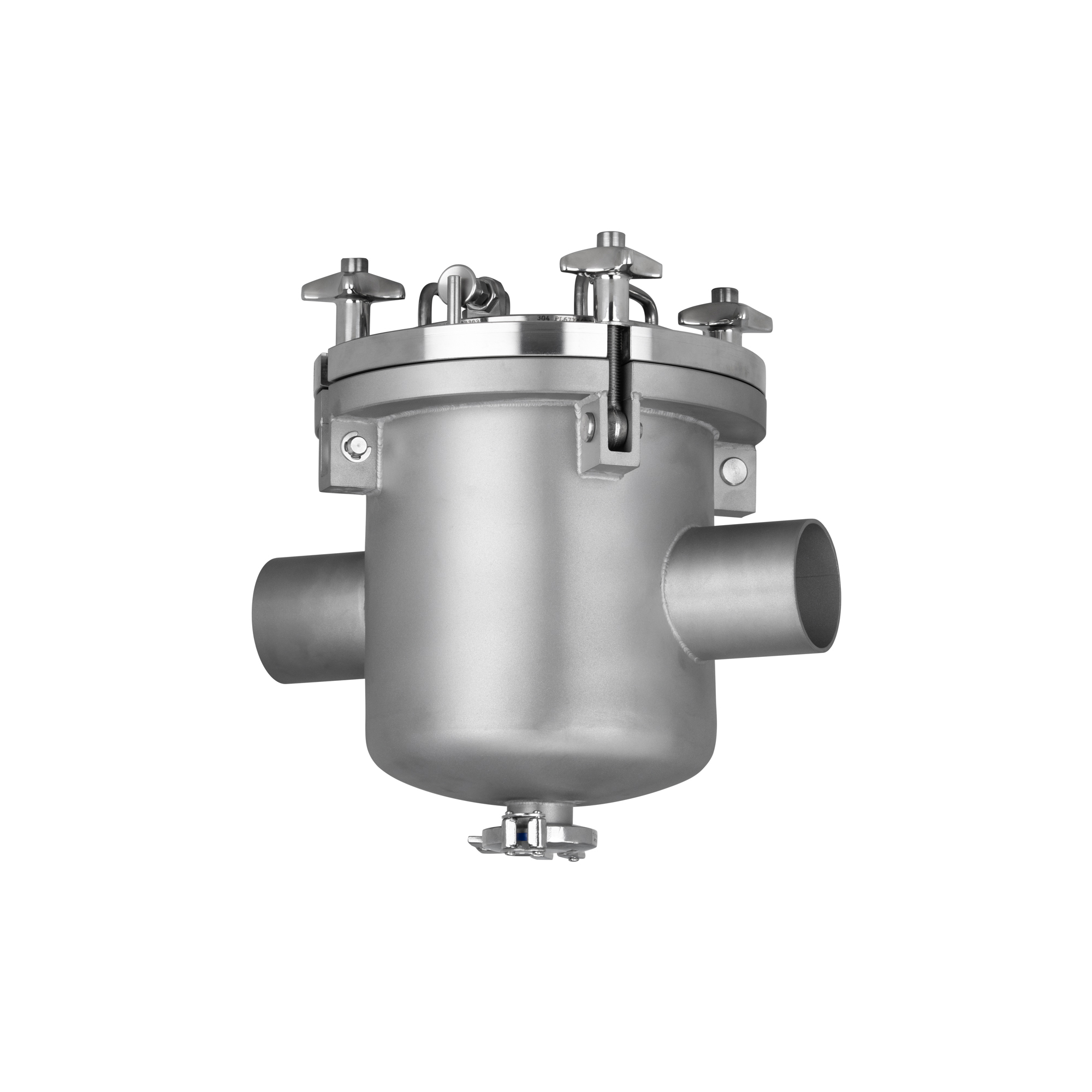

The Hygienic Inline Magnetic Fluid Filter is designed for continuous removal of ferrous and paramagnetic contamination from liquid and semi-liquid process streams within food, beverage, and pharmaceutical production environments.

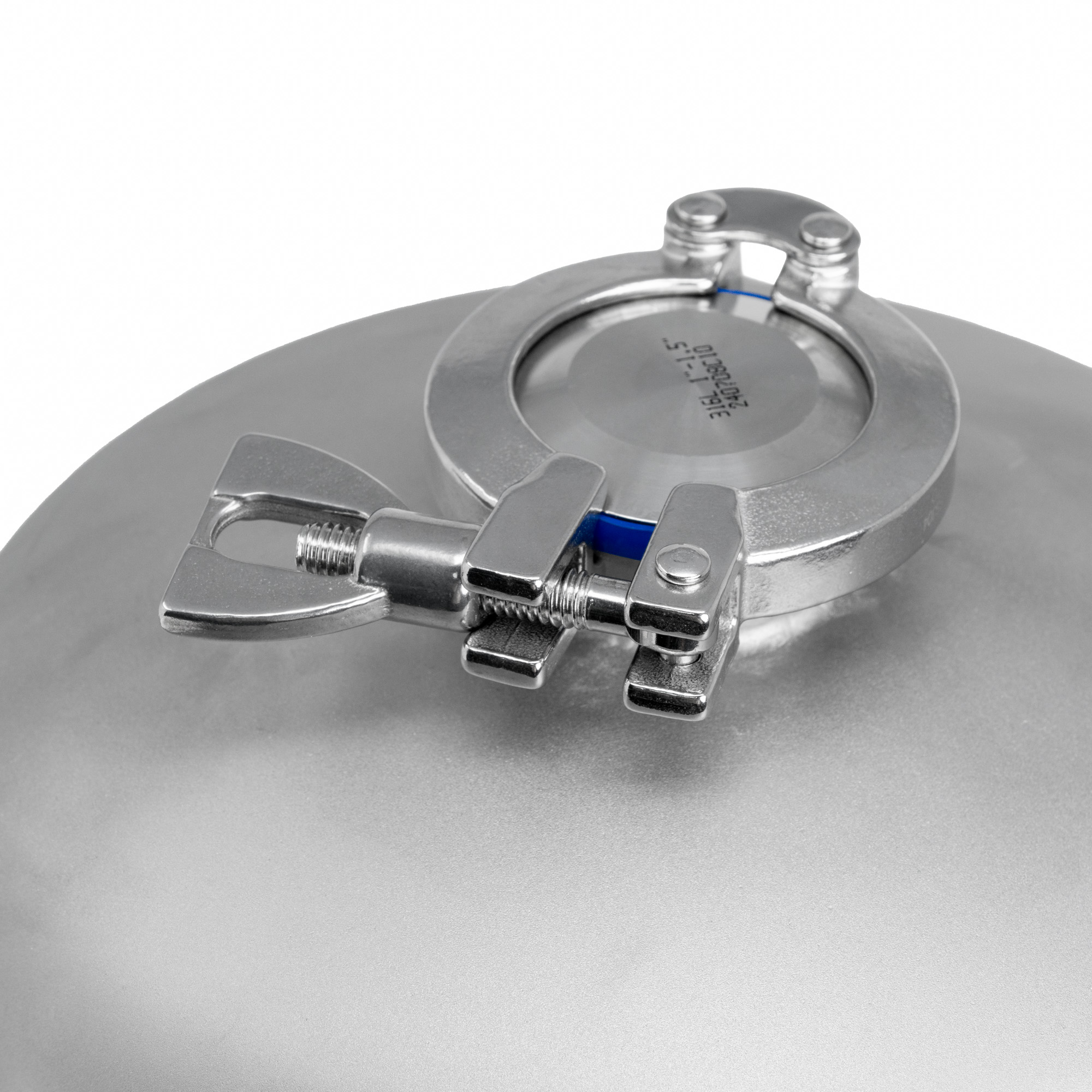

The unit incorporates high-intensity rare earth magnetic elements housed within a fully sealed 316L stainless steel body suitable for pressurised pipeline systems, The filter incorporates a quick release coupling in the base to enable easy drain off during clean down procedures.

Manufactured in 316L stainless steel. FDA compliant elastomers. EC 1935/2004 compliant materials. Suitable for CIP systems and designed in accordance with GMP principles.

Benefits

High-Intensity Performance

Powerful NdFeB magnets capture fine ferrous contamination from liquid processing streams.

Hygienic 316L Stainless Steel Construction

Manufactured from fully sealed 316L stainless steel with FDA-compliant elastomers.

Designed for Clean-in-Place Systems

Smooth hygienic surfaces & GMP-compliant design support integration into processing lines.

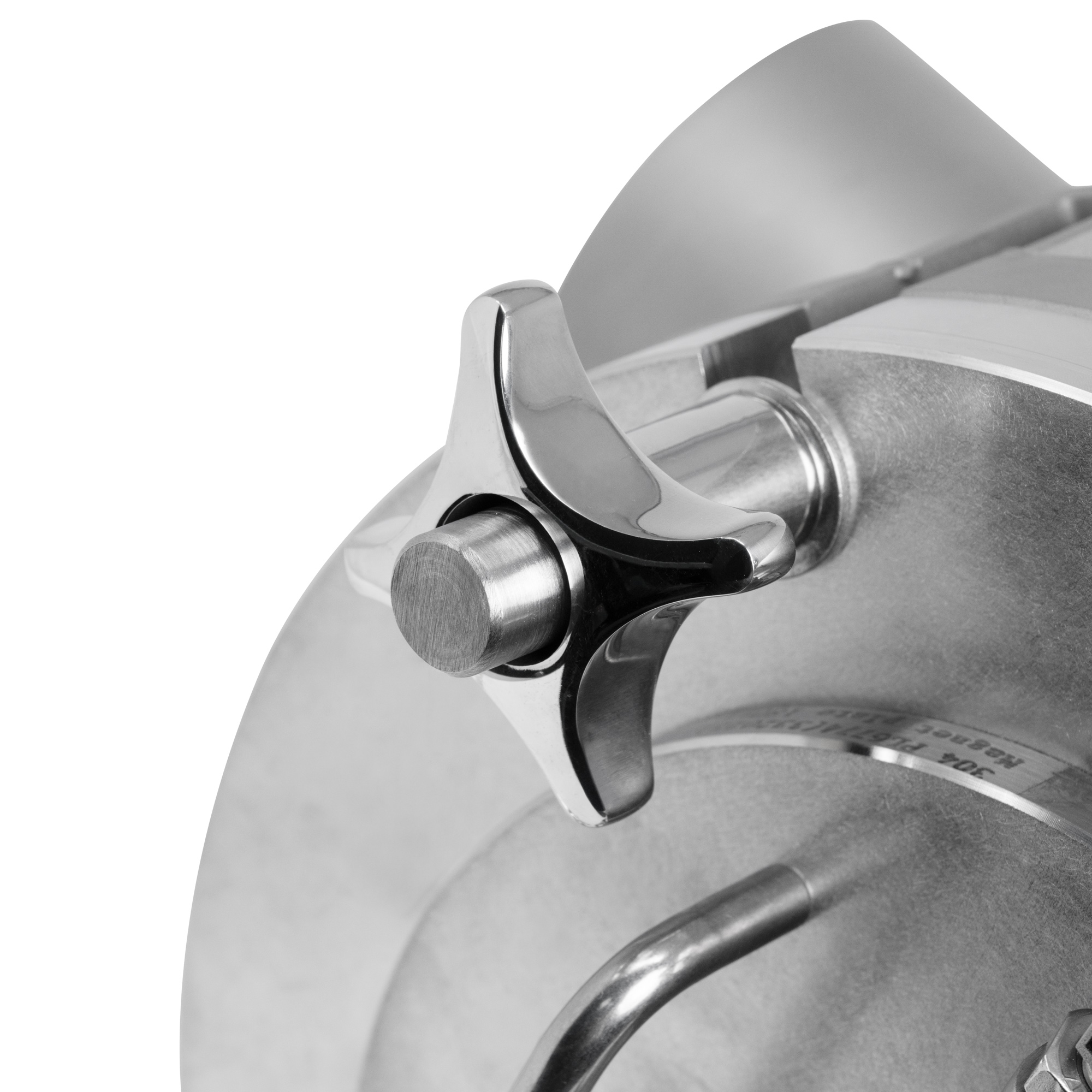

Quick-Release Cleaning System

Integrated quick-release coupling allows fast draining and simple maintenance.

Options Available

The options below show our standard in-line magnetic filter traps, but your process doesn’t have to fit a standard design. We can manufacture custom filter to match any size, material, and operating conditions. Speak to our team to get a solution tailored to your application

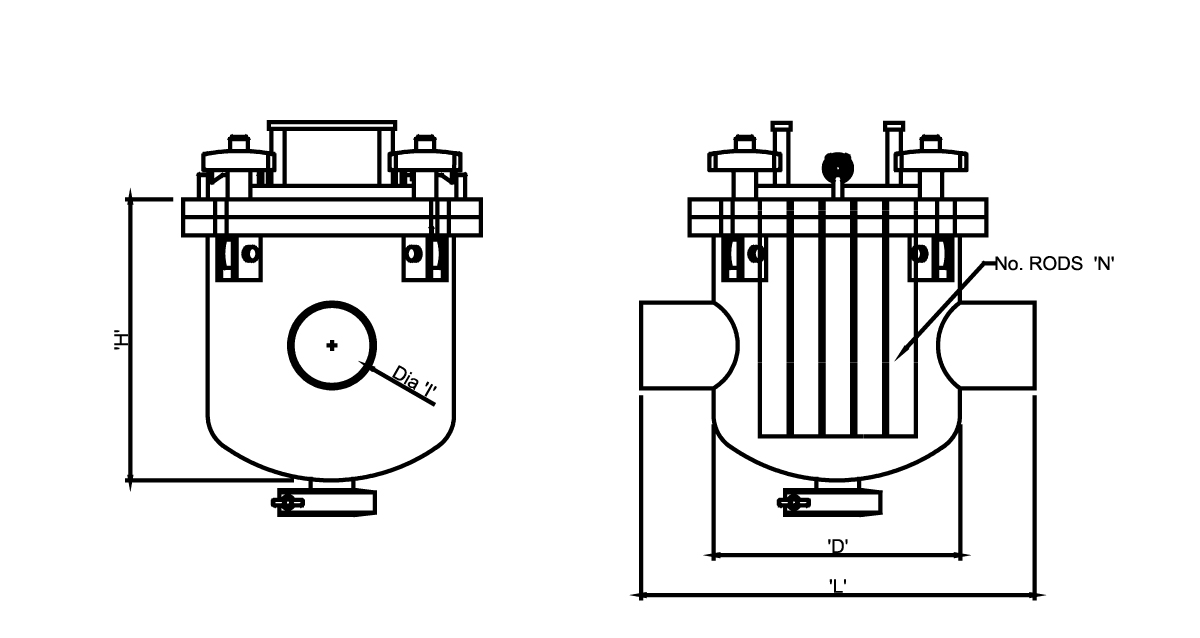

Part Number	Length 'L'	Height 'H'	Nominal Dia 'D'	Inlet Size	Number of Rods 'N'	Weight (Kgs)
ME-MT-170	300mm	200mm	168mm	50mm	5	20
ME-MT-200	350mm	250mm	219mm	50 / 75 / 100mm	7	31
ME-MT-300	450mm	325mm	273mm	100 / 125 / 150mm	9	48

Technical Data

Specification	Details
Magnet Performance (Easy Clean)	9,000 - 10,000 Gauss (Measured On Magnetic Face)
Magnet Performance (Fixed Rod)	9,000 - 12,000 Gauss (Measured On Magnetic Face)
Magnet	NdFeB - N50 Grade
Maximum Operating Pressure	10 bar
Material	316 Stainless Steel. Brushed to 0.8Ra
Operating Temperature	-20 / +80 °C
Mounting Details	Plain Spouts. Tru-Clamp, DIN, SMS, BSP, ANSI, Flanged. Other ends available.
Available Options	Higher pressure. Higher temperature up to 150 °C.

Common Applications

In-line magnetic filter traps are suitable for a wide range of applications including:

Removes ferrous contamination from dairy products, sauces, and edible oils to maintain product purity and protect downstream equipment.

Captures fine metal particles in beverages, syrups, and liquid sweeteners, helping maintain product quality and preventing contamination.

Ensures high levels of hygiene and product integrity when processing pharmaceutical liquids within regulated production environments and facilities.

Protects cosmetic and personal care formulations by removing metallic contamination from liquid processing streams during production processes.
