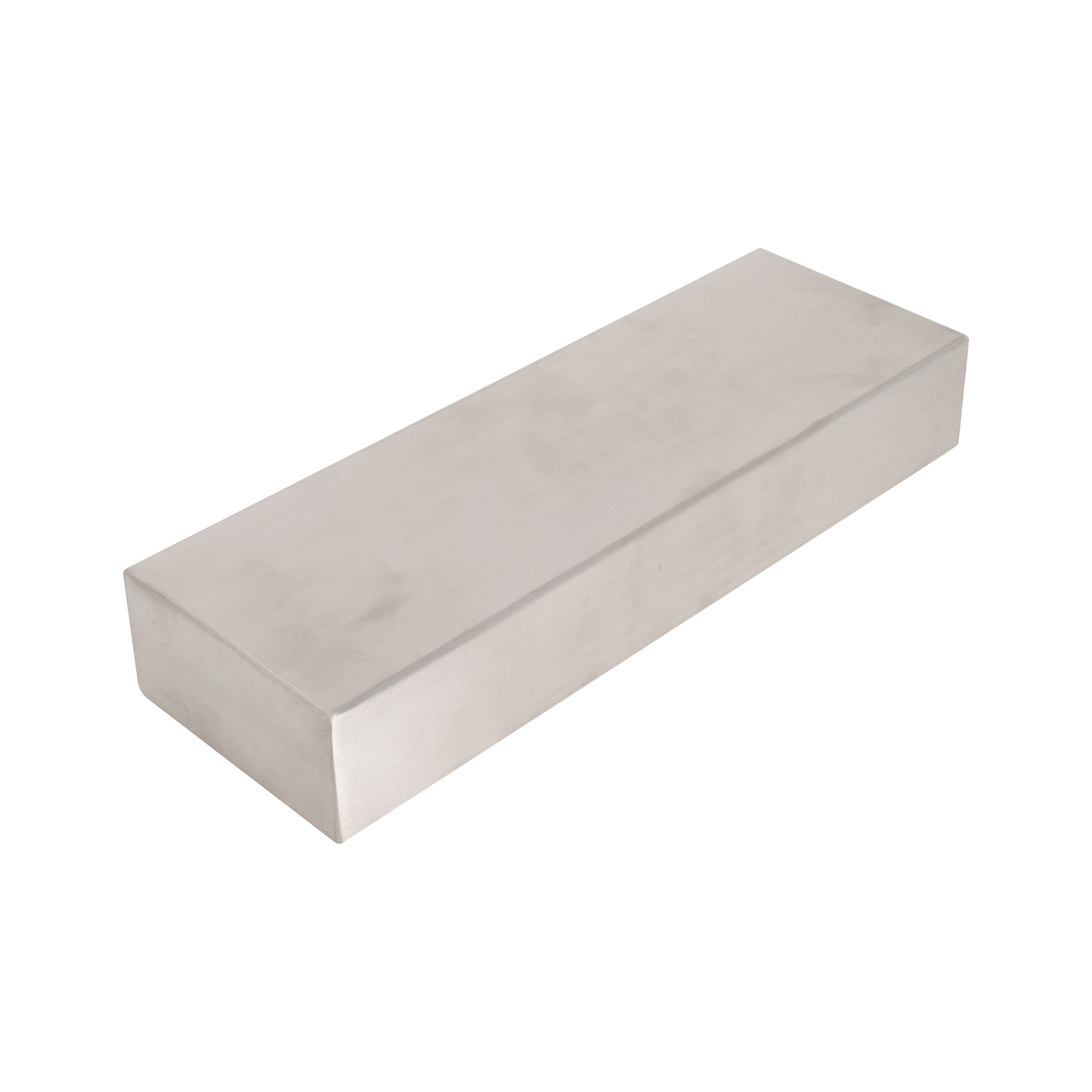

Magnetic Strip Separator

High-intensity magnetic unit designed to remove tramp ferrous metal from conveyed materials.

Installed above conveyors or vibratory feeders
Powerful Rare Earth magnets generate a focused magnetic field
Captures common tramp metal such as nuts, bolts, screws, and wire
Custom options available on request

Overview

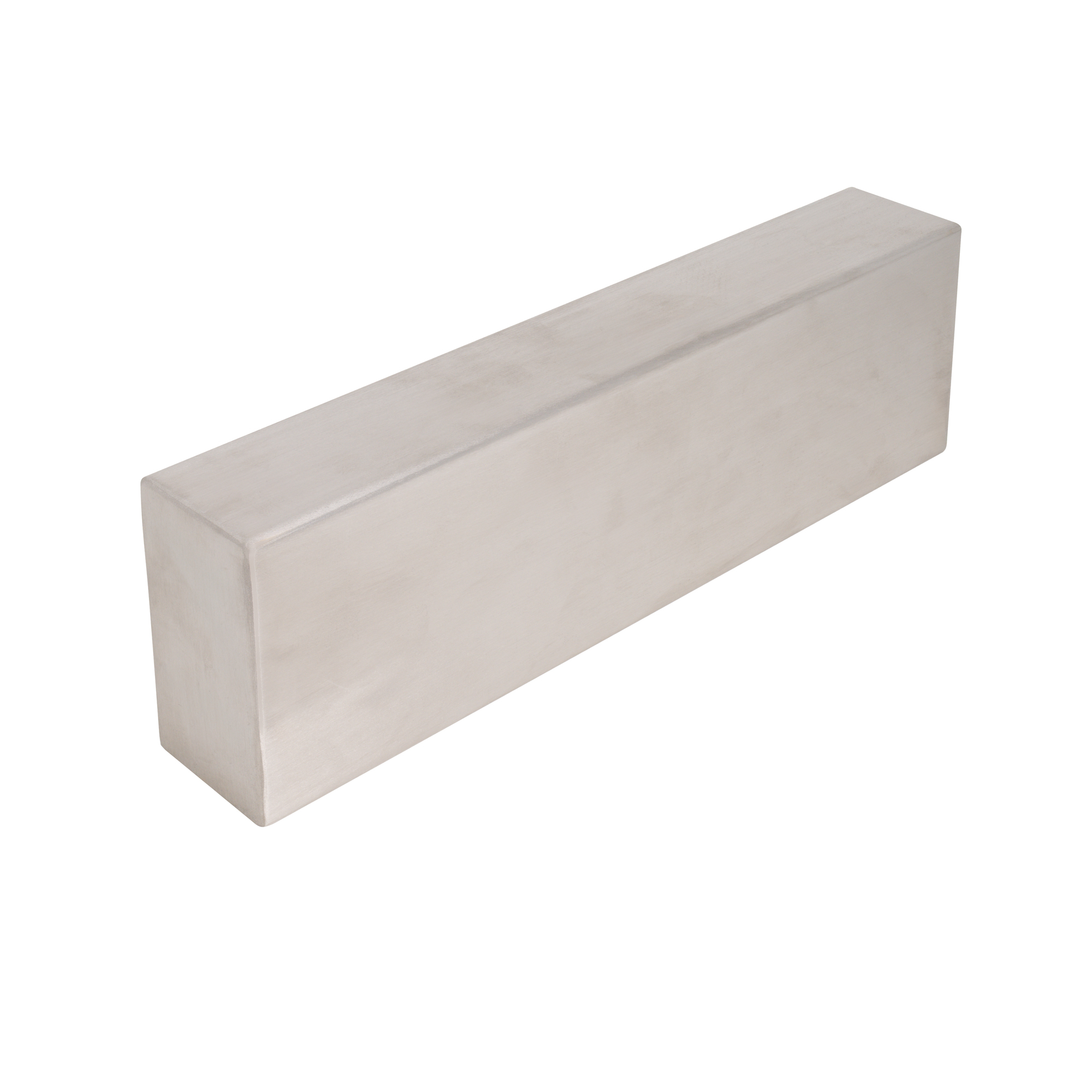

High-intensity strip magnetic separator designed to remove tramp ferrous content

High-Energy Rare-Earth magnet assembly in a fully welded and brushed stainless steel case. The extremely powerful magnets are highly efficient at removing magnetic and para-magnetic particles from both dry free flowing powder and granules when used as a primary magnetic separator.

The high energy strip magnet can be positioned across a conveyor line above the processed material where the ferrous contamination is pulled out from the product as it passes under the magnetic strip. The deep magnetic field from the magnet makes it ideal for use with product depths up to approx. 50mm (depending on type of product being conveyed). the attracted contamination is then safely held out of the product flow and cannot be wiped o by the processed material.

The strip magnet can also be used to assist with the conveying of ferrous objects on conveyor processing lines. Incorporating these strip magnets within the conveyor framework beneath the process belt increases the traction between the conveyor belt and the conveyed product. Product slippage is reduced which can result in increased process line speeds being achieved. Product inversion is also possible by incorporating the units in transfer conveyors.

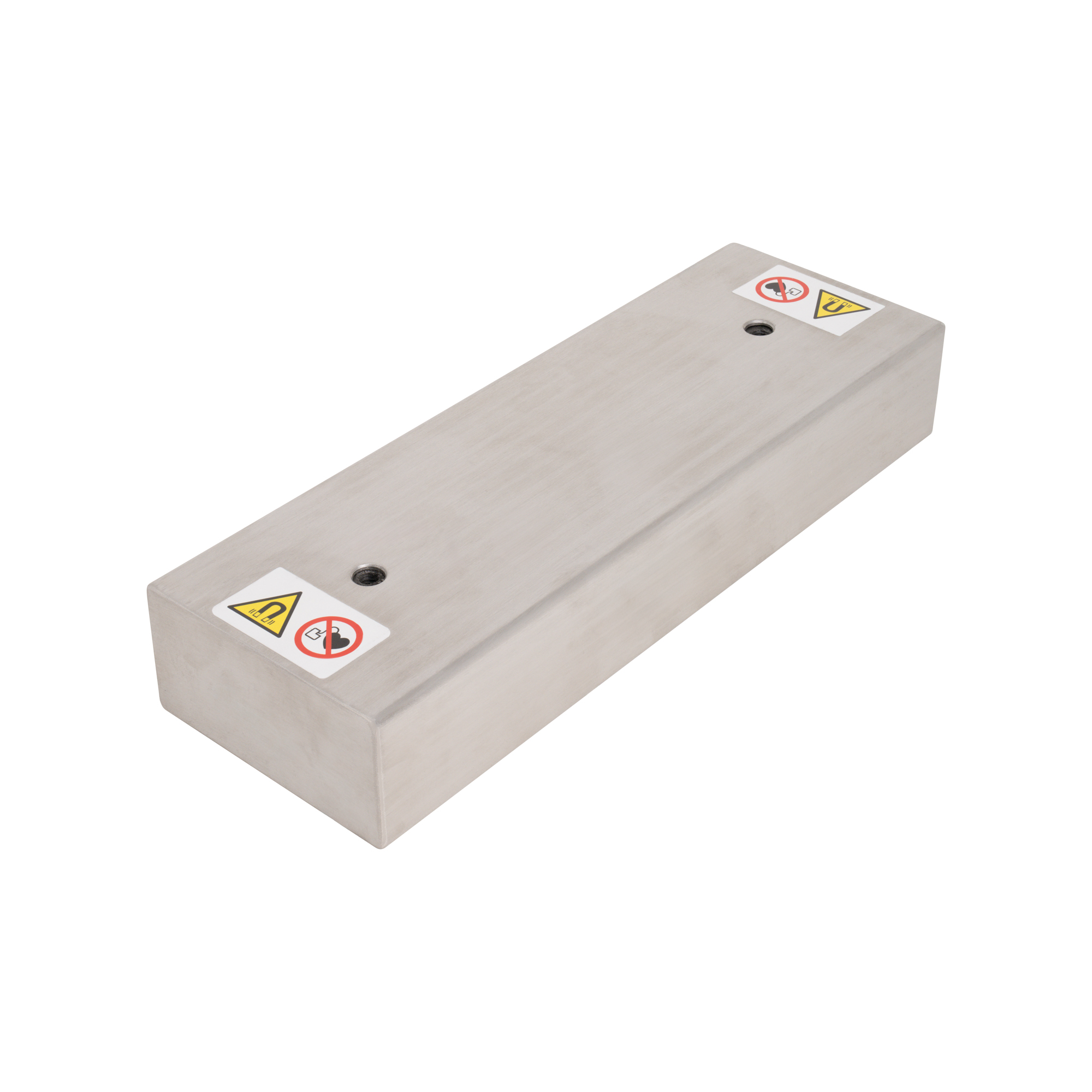

Mounting holes on the non-magnetic rear face of the magnet enable easy mounting of the units to machinery frameworks.

Benefits

Easy Cleaning & Maintenance

Designed for easy cleaning, reducing maintenance.

Protects Downstream Equipment

Helps reduce machinery wear and costly interruptions.

Improved Material Flow

Supports smoother and more consistent conveying.

Heavy-Duty Performance

Built for continuous use in demanding environments.

Options Available

The options below show our standard strip magnetic separators, but your process doesn’t have to fit a standard design. We can manufacture custom strip magnets to match your installation, material, and operating conditions. Speak to our team to get a solution tailored to your application.

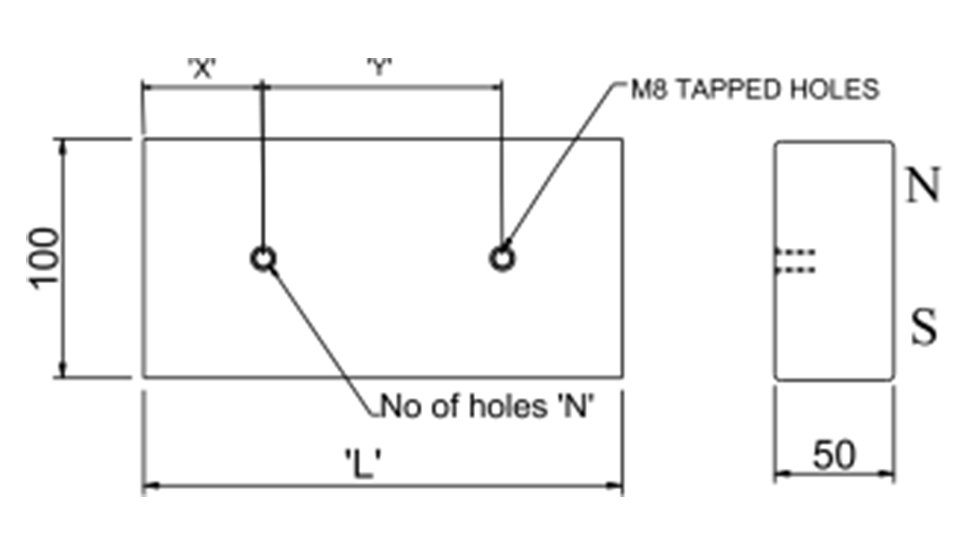

Part Number	Length 'L'	Dim 'X'	Hole Centre Distance 'Y'	No Of Holes 'N'	Weight (Kgs)
ME-SM-200	200mm	50mm	100mm	2	4.8
ME-SM-300	250mm	50mm	200mm	2	7.2
ME-SM-400	300mm	50mm	300mm	2	9.9
ME-SM-500	350mm	50mm	200mm	2	12.3
ME-SM-600	400mm	50mm	250mm	2	14.7

Technical Data

Specification	Details
Magnet Performance	3500 Gauss (Measured On Magnetic Face) Depth of field - 90mm (test piece mild steel bar 5mm dia x 25mm long)
Magnet	NdFeB - N45 Grade
Material	304 Stainless Steel. Brushed finish
Operating Temperature	-20 / +90 °C
Mounting Details	Supplied with M8 tapped holes as standard
Standard Length Options	200-600mm in 100mm increments
Available Options	316 Grade Stainless Steel M8 mounting studs, 40mm long

Common Applications

Strip magnetic separators are suitable for a wide range of applications including:

Over-belt installation on conveyors to remove tramp ferrous metal

Vibratory feeders and chutes where continuous metal removal is required

Bulk handling and processing lines to protect crushers, mills, mixers

Aggregates, recycling, plastics, and food processing industries
