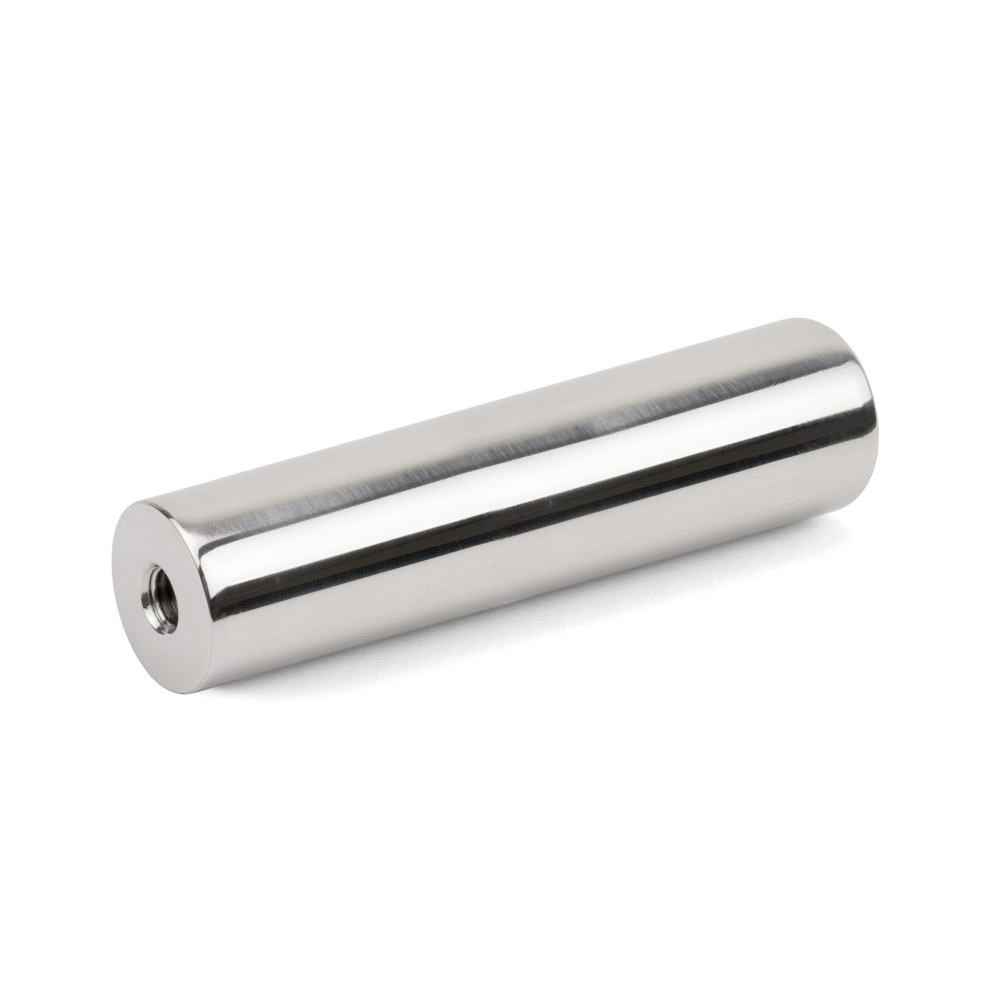

Neodymium Magnetic Rods

High-intensity magnetic rods designed to remove fine ferrous contamination from free-flowing materials

Designed for powders, granulates and liquids
Easily integrated into OEM assemblies & builds
Wide range of standard lengths available
Custom options available on request

Download data sheet Request a quote

Overview

High-intensity underflow magnet designed for large ferrous contamination

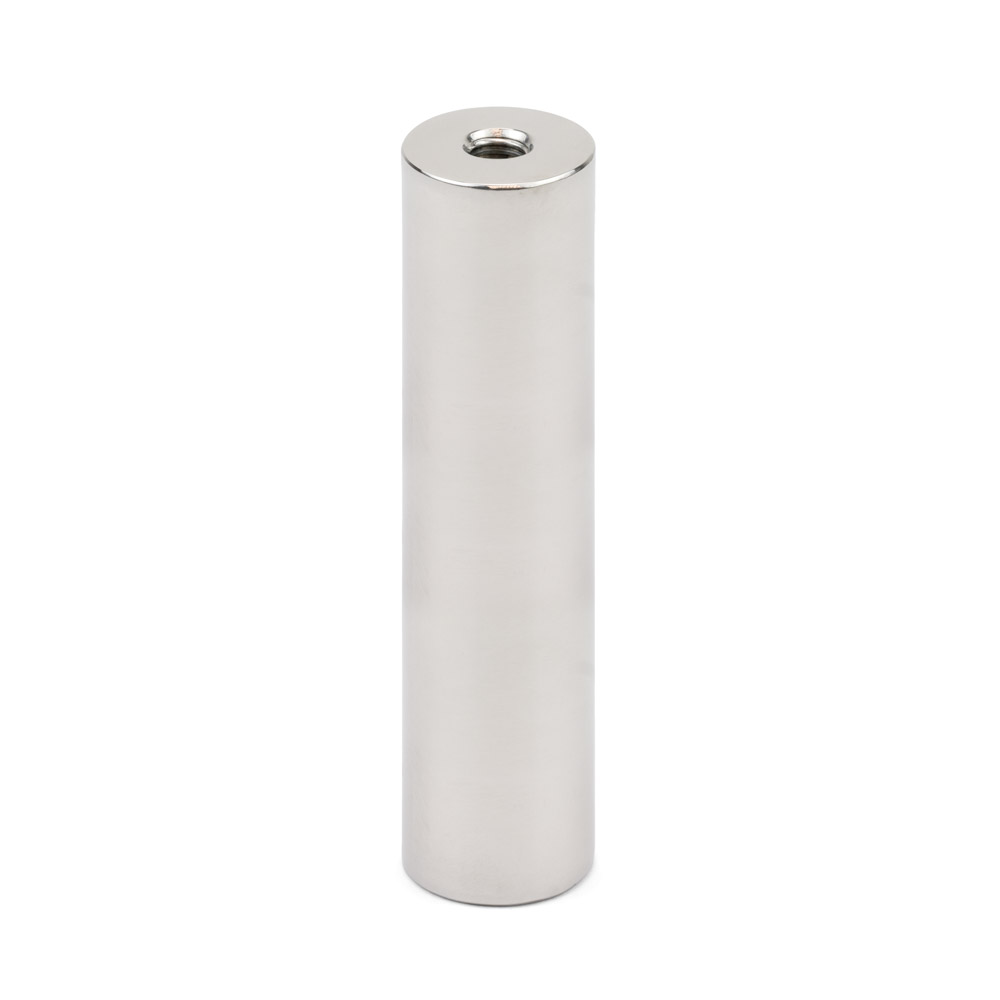

High Energy Rare-Earth magnet assembly housed in a fully welded and polished stainless-steel tube. The extremely powerful magnets are highly efficient at removing magnetic and para-magnetic particles from both dry, free flowing powders/granules and liquids.

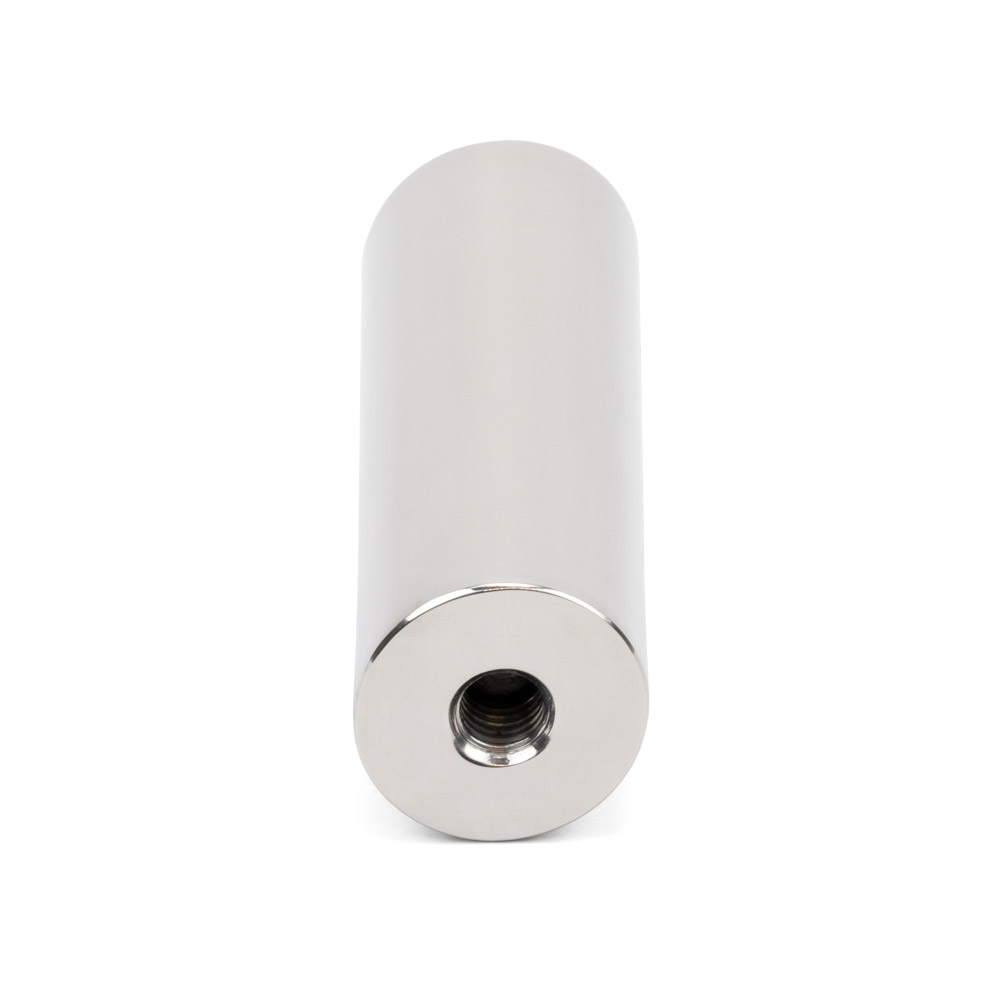

The high energy rods are the basis of numerous designs of magnetic separators available, the tapped holes in the rod ends make these rods ideal for mounting into existing areas where space is at a premium to oer magnetic protection to the processed product.

Benefits

Easy Cleaning & Maintenance

Designed for easy cleaning, reducing maintenance.

High-Strength Separation

Captures fine ferrous particles with powerful magnetic force.

Easy System Integration

Simple to install into existing equipment and assemblies.

Hygienic Stainless-Steel Design

Fully welded construction supports clean processing environments.

Options Available

Part Number	Length 'l'	Weight (Kg)
ME-RM-100	100mm	0.38
ME-RM-150	150mm	0.57
ME-RM-200	200mm	0.71
ME-RM-250	250mm	0.96
ME-RM-300	300mm	1.15
ME-RM-350	350mm	1.34
ME-RM-400	400mm	1.53
ME-RM-450	450mm	1.72
ME-RM-500	500mm	1.91
ME-RM-550	550mm	2.11

Part Number	Length 'l'	Weight (Kg)
ME-RM-600	600mm	2.30
ME-RM-650	650mm	2.49
ME-RM-700	700mm	2.68
ME-RM-750	750mm	2.87
ME-RM-800	800mm	3.06
ME-RM-850	850mm	3.25
ME-RM-900	900mm	3.45
ME-RM-950	950mm	3.64
ME-RM-1000	1000mm	3.83

Technical Data

Specification	Details
Magnet Performance	7,000, 9,000 and 11,000 Gauss Available (Measured On Tube Surface)
Magnet	NdFeB - Up To N50 Grade Available
Material	Tube/Ends - 316 Stainless Steel. Polished To 0.4μm
Operating Temperature	-20 / +80 °C

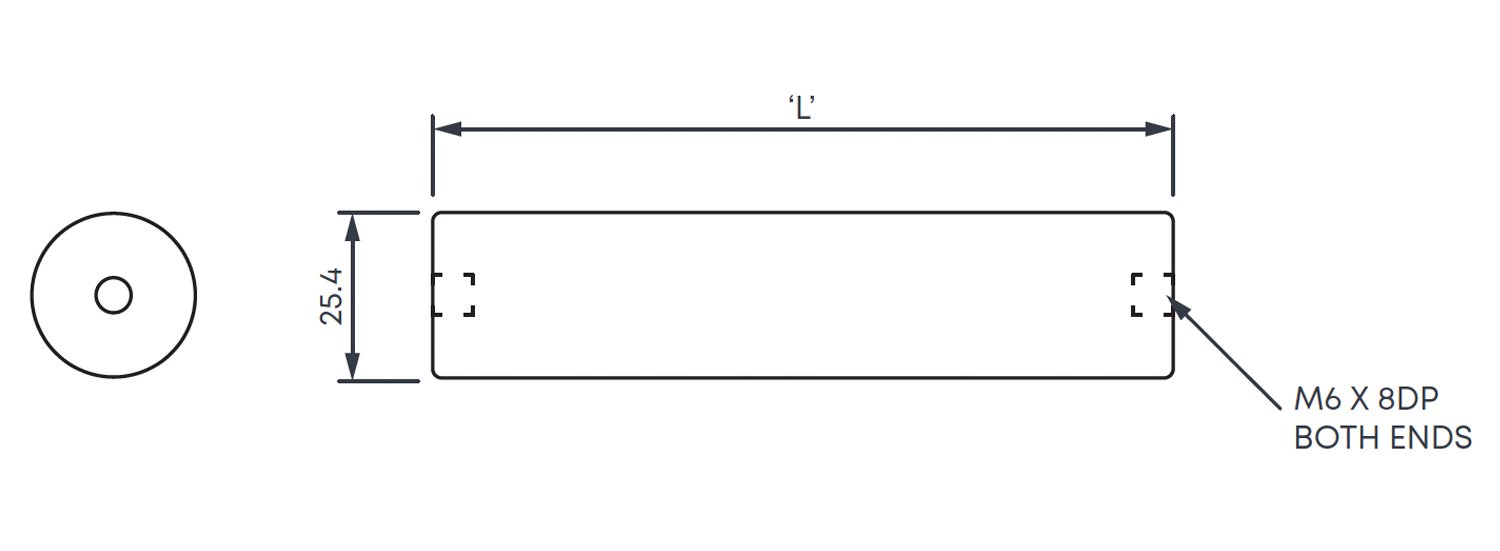

Mounting Details	Supplied with M6 x 8mm tapped holes as standard
Standard Length Options	100-1,000mm in 50mm increments
Available Options	Plain ends, external studs, optional thread/stud sizes. Higher temperature versions.

Common Applications

Neodymium magnetic rods offer great versatility for a wide range of applications including:

Magnetic separation in powders, granulates and liquids

Integrated into custom separator set ups and OEM equipment

Installed upstream in mixers, mills, extruders and pumps

Within food, plastics, chemical and bulk material processing lines
