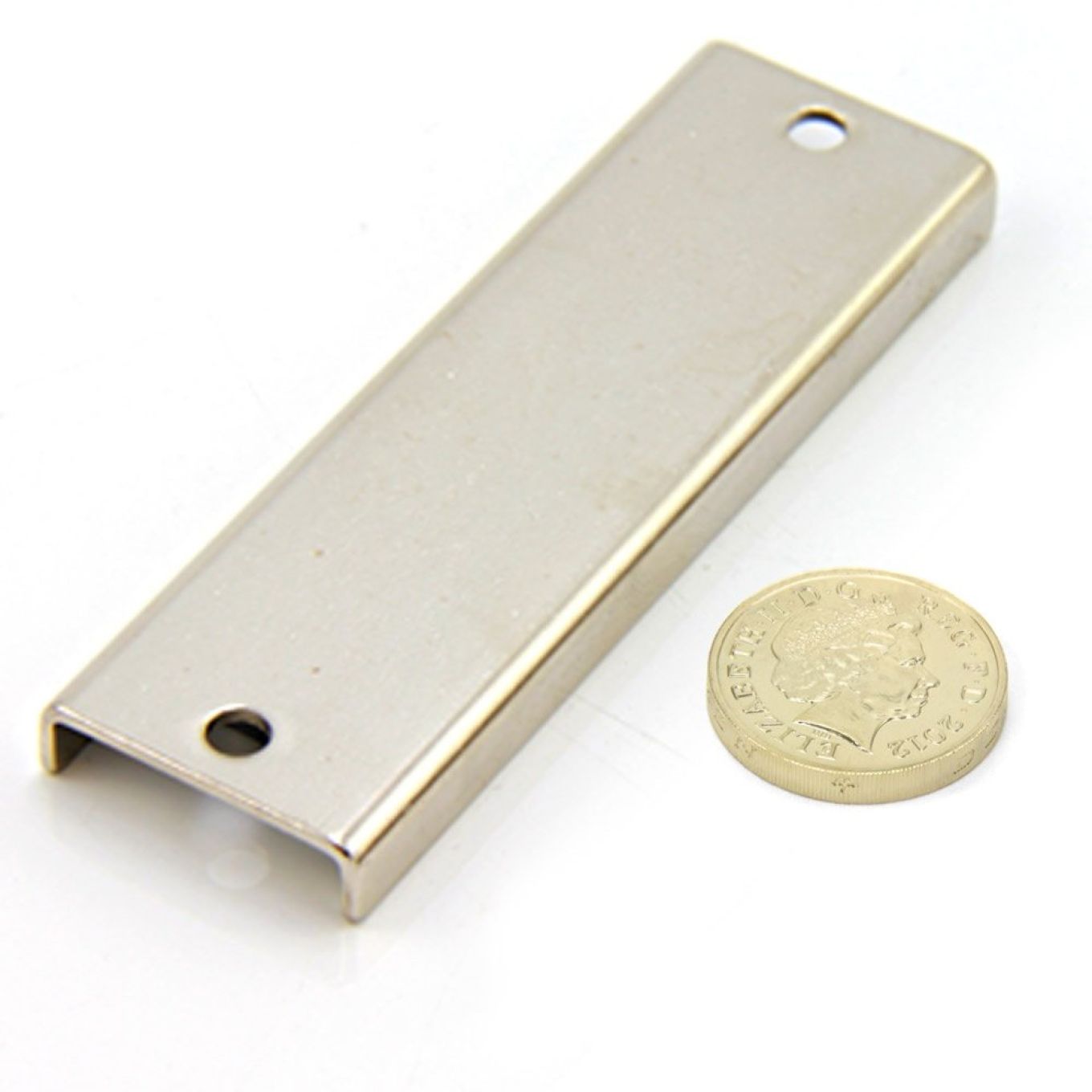

76 x 24 x 6.35mm thick (x 4mm hole) Ferrite Channel Magnet - 10kg Pull
76 x 24 x 6.35mm thick (x 4mm hole) Ferrite Channel Magnet - 10kg Pull
Code: CP7624L-1

76 x 24 x 6.35mm thick (x 4mm hole) Ferrite Channel Magnet - 10kg Pull

Ferrite (Y30BH) steel-cased channel magnet with fixing holes at each end - this innovative design provides 10kg vertical pull at great value.

Select Pack Size
£2.16 (Inc. VAT)£1.80 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

  • 76mm x 24mm x 6.35mm with two 4mm holes.

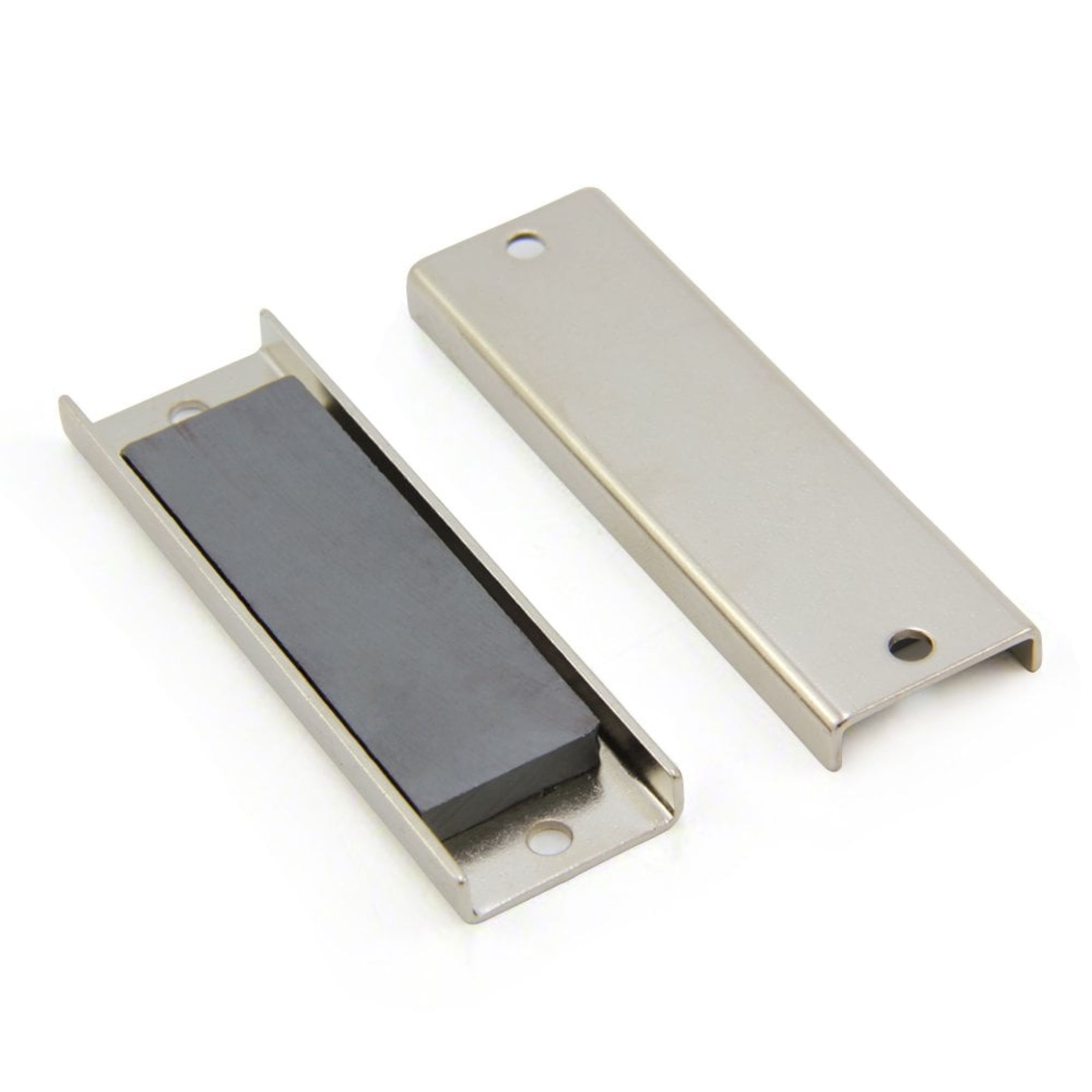

  • Innovative rectangular design with steel casing which greatly increases performance.
  • The magnet's north pole is on the centre of the magnet's face with the south pole on the outer edge meaning both poles are on the same face.
  • 10kg maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet.
  • Resistant to corrosion so no extra coating required.

These channel magnets offer excellent value with a maximum pull strength of 10kg. The innovative channel design with steel casing greatly increases performance. Each magnet can be screwed into place using two 4mm screws and has a maximum operating temperature of 180 degrees Celsius. They are commonly used around the home and for holding machine parts in place.
