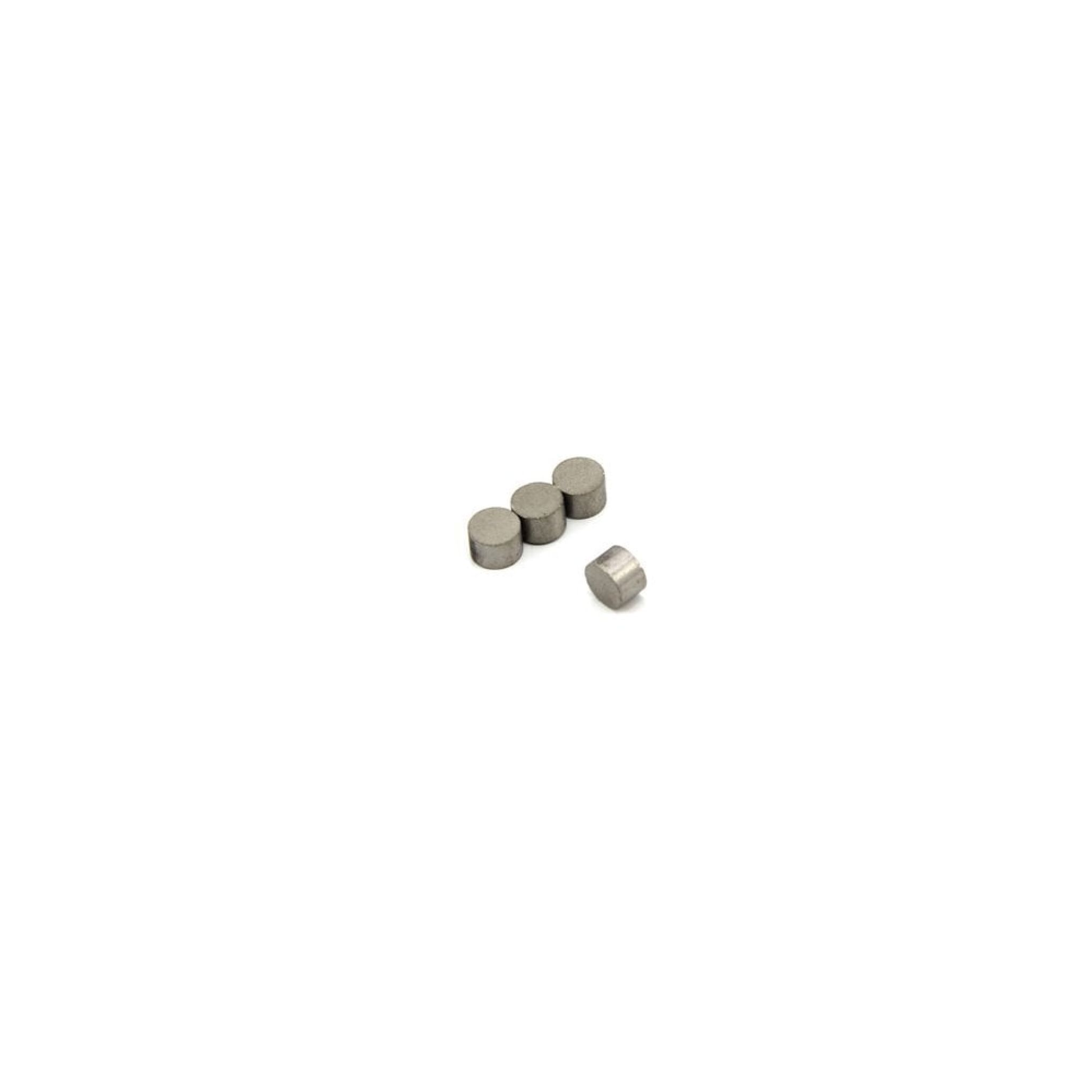

6mm dia x 4mm thick Diametrically Magnetised Samarium Cobalt Magnet - 0.3kg Pull
6mm dia x 4mm thick Diametrically Magnetised Samarium Cobalt Magnet - 0.3kg Pull
Code: SP64SCDM-4

6mm dia x 4mm thick Diametrically Magnetised Samarium Cobalt Magnet - 0.3kg Pull

Small, diametrically magnetised, high-operating temperature samarium cobalt magnets, capable of operating in temperatures up to 300oC. These diametrically magnetised magnets have their north and south pole on opposite curved sides, cutting the flat surface in half.

Select Pack Size
£4.41 (Inc. VAT)£3.68 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

  • 6mm diameter x 4mm thick.
  • +/-0.1mm tolerance.
  • Each magnet's north and south pole are on opposite 6mm diameter faces.
  • Each magnet can support a steel weight of up to 0.3kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
  • 300 degrees Celsius Maximum operating temperature.
  • Resistant to demagnetisation and corrosion without any extra coating.

Samarium cobalt is a type of rare-earth magnet that has the ability to withstand and operate in high temperatures, however they are not as powerful as super-strong Neodymium magnets. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors. Unusually, diametrically magnetised magnets are not designed to hold the maximum possible weight for the size of the magnet but instead are used to provide rotational movement. A diametrically magnetised magnet is magnetised across its diameter so that the north pole in on one curved side and the south pole is on the opposite curved side. Within motors, diametrically magnetised magnets are commonly used on the end of shafts to provide drive. They can also be used to produce a magnetic rack and pinion system by using a line of north and south in alternating polarities. It is also possible to use diametrically magnetised magnets for reed switch applications.
