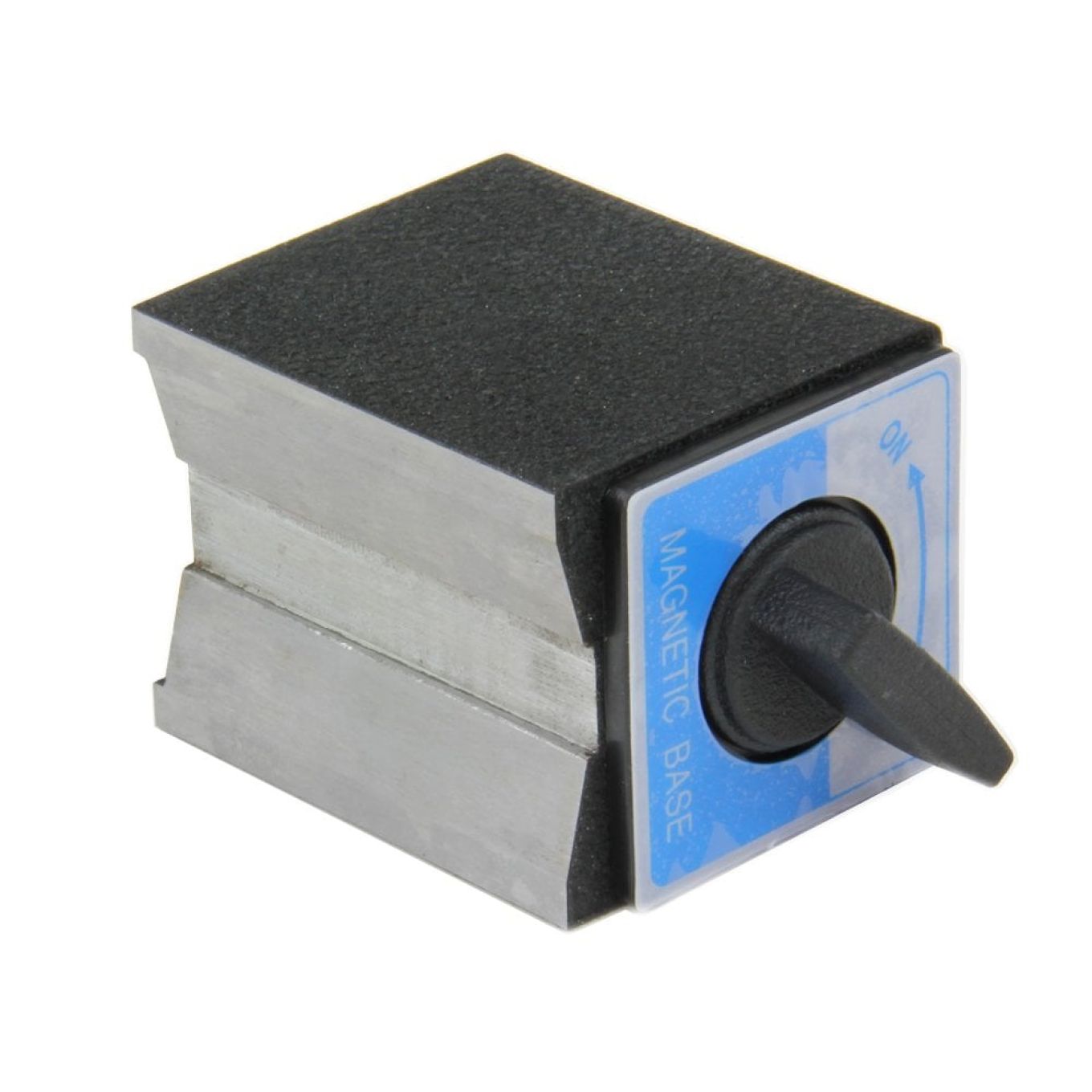

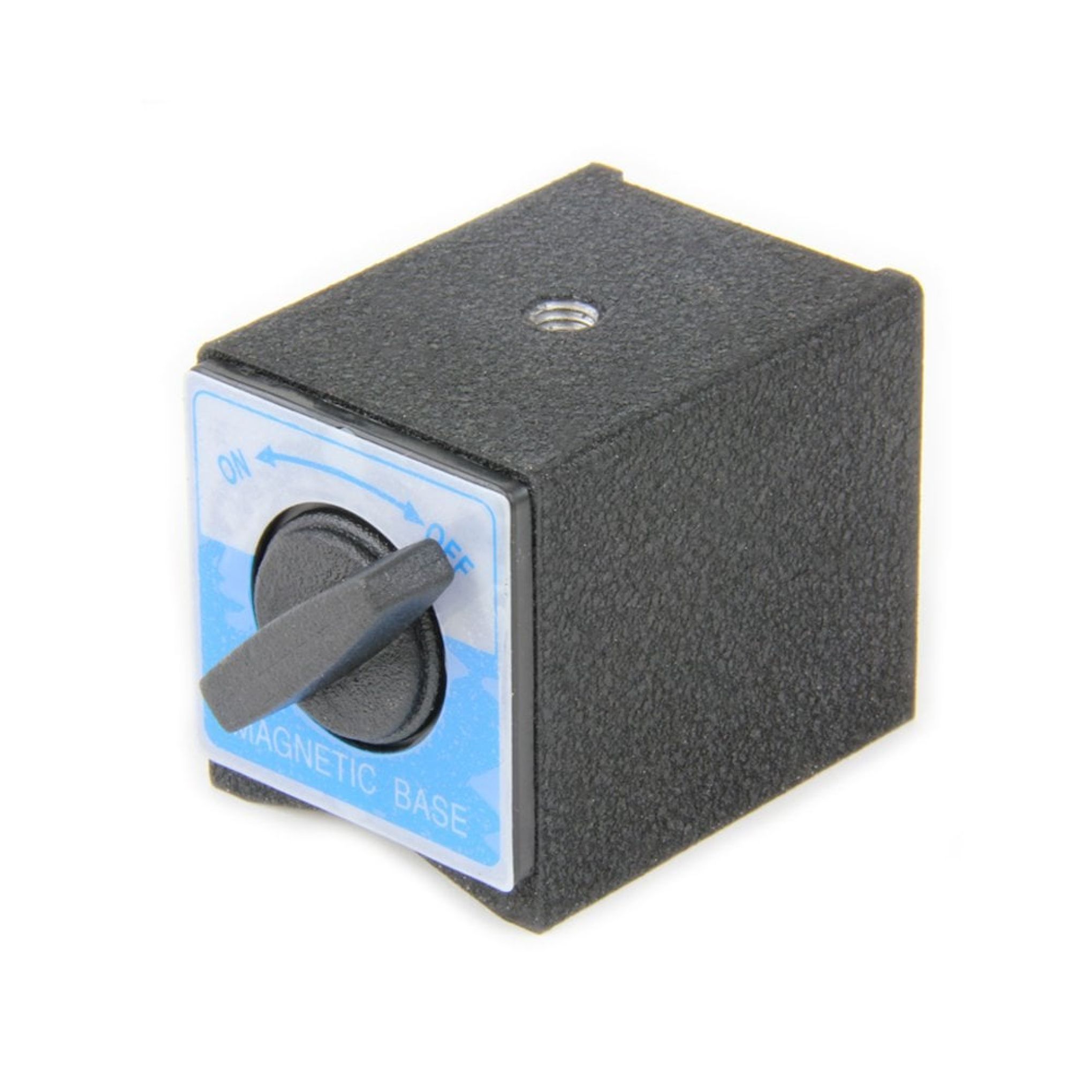

63 x 50 x 55mm high Switchable Magnetic Base With M8 Mounting Hole - 70kg Pull
63 x 50 x 55mm high Switchable Magnetic Base With M8 Mounting Hole - 70kg Pull
Code: F4M905-1

63 x 50 x 55mm high Switchable Magnetic Base With M8 Mounting Hole - 70kg Pull

Switchable, strong Neodymium magnet assembly complete with simple toggle switching mechanism and shallow 'V' shaped magnetic base. Ideal for quick-release jigs and fixings.

Select Pack Size
£27.12 (Inc. VAT)£22.60 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

  • 63mm x 50mm x 55m high.
  • Switchable magnetic base in a shallow 'V' shape for gripping round surfaces of at least 80mm diameter.
  • Simple toggle switching mechanism.
  • Each magnet can support a steel weight of up to 70kg vertically from the magnetic face when in flush contact with a mild steel surface at least 6mm thick.

Operated by a simple toggle switch, switchable magnets are ideal for quick-release jigs, fixings and lifting applications where it is necessary to be able to turn magnetism on and off. Perfect for industrial environments each magnet can lift a steel weight of up to 70kg when in flush contact with a mild steel surface at least 6mm thick. If more holding force is required, a number of these switchable magnets can be used together. Each switchable magnet has an M8 threaded mounting hole.
