- 31mm dia x 6mm thick Rubber Coated N42 Neodymium "2 Pole" Pot Magnet

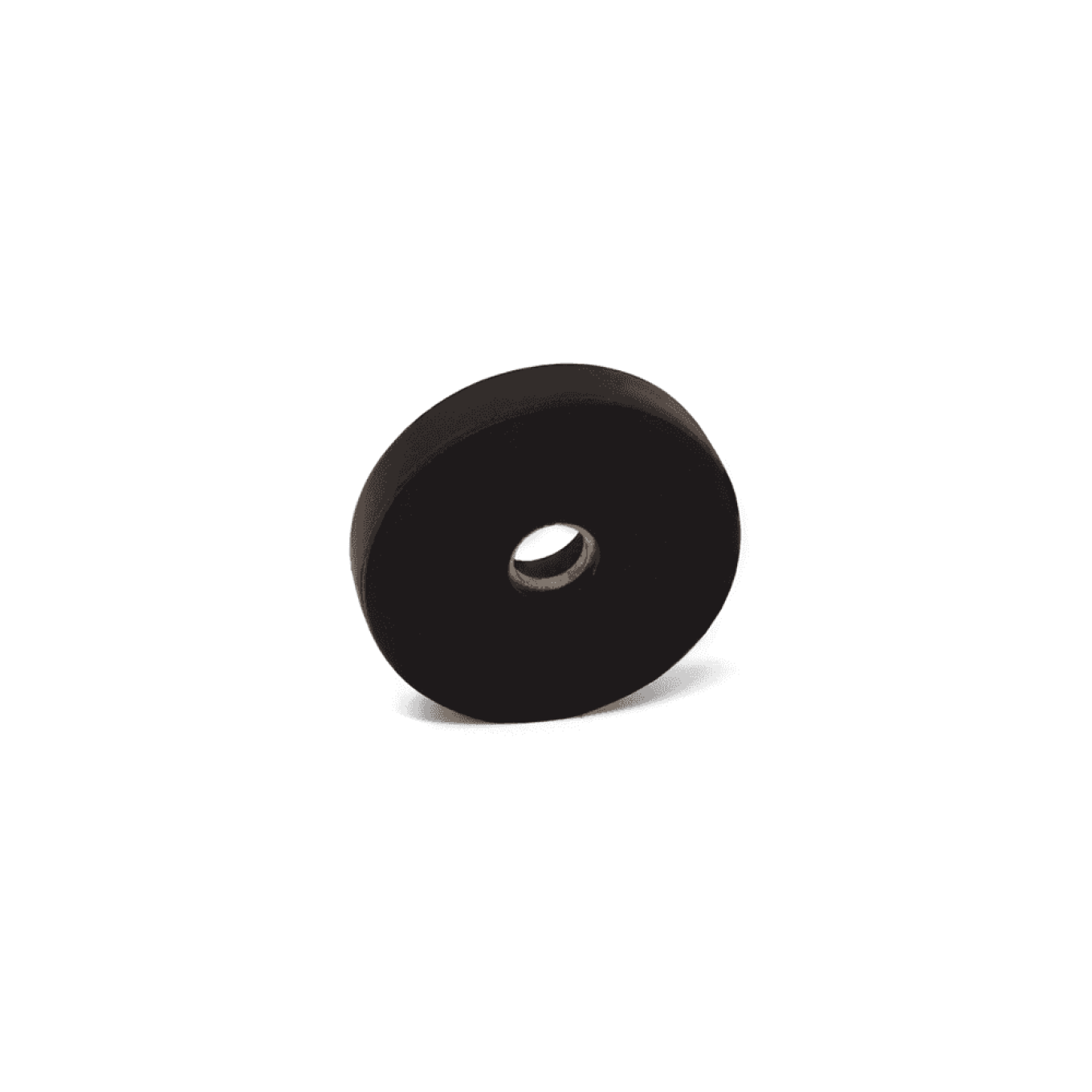

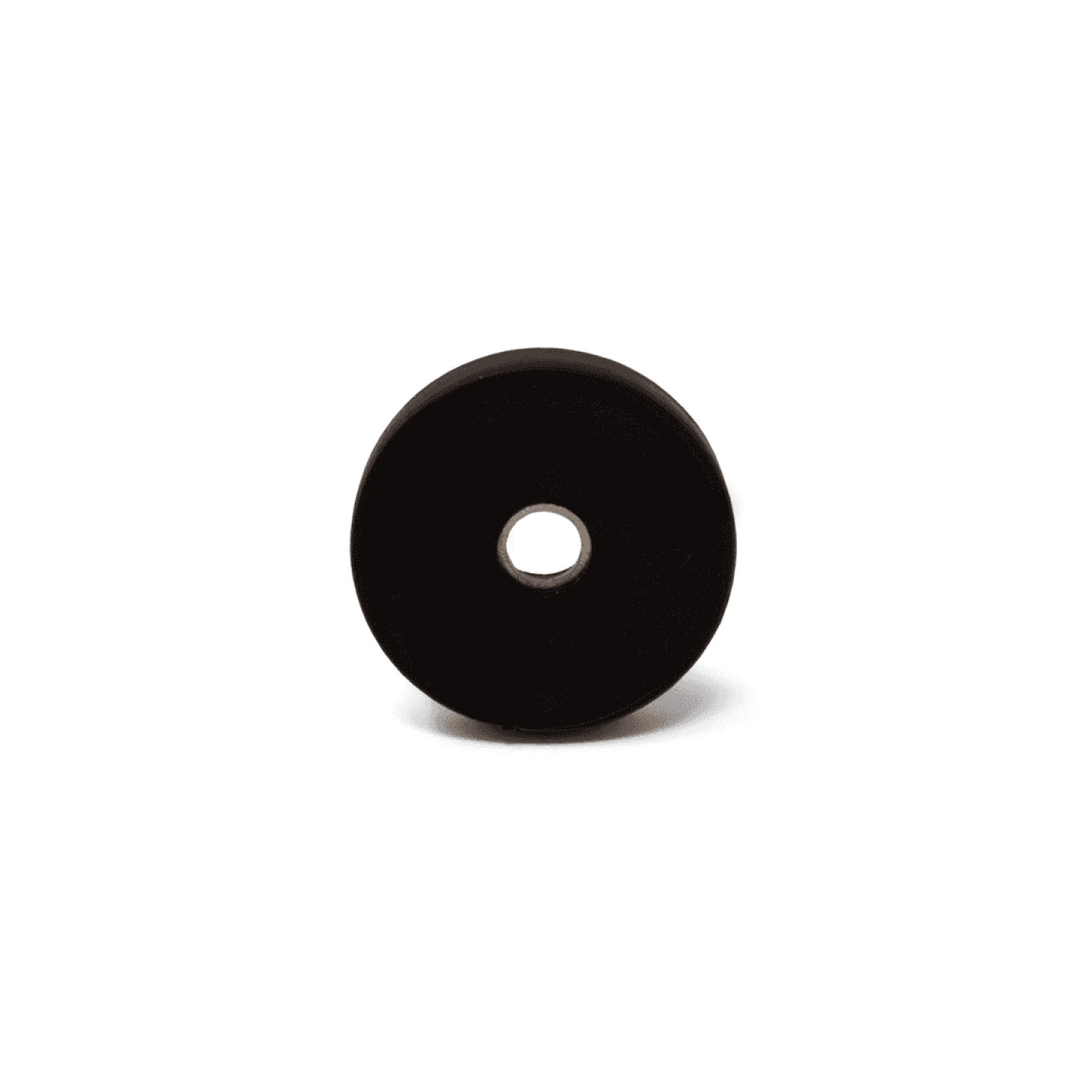

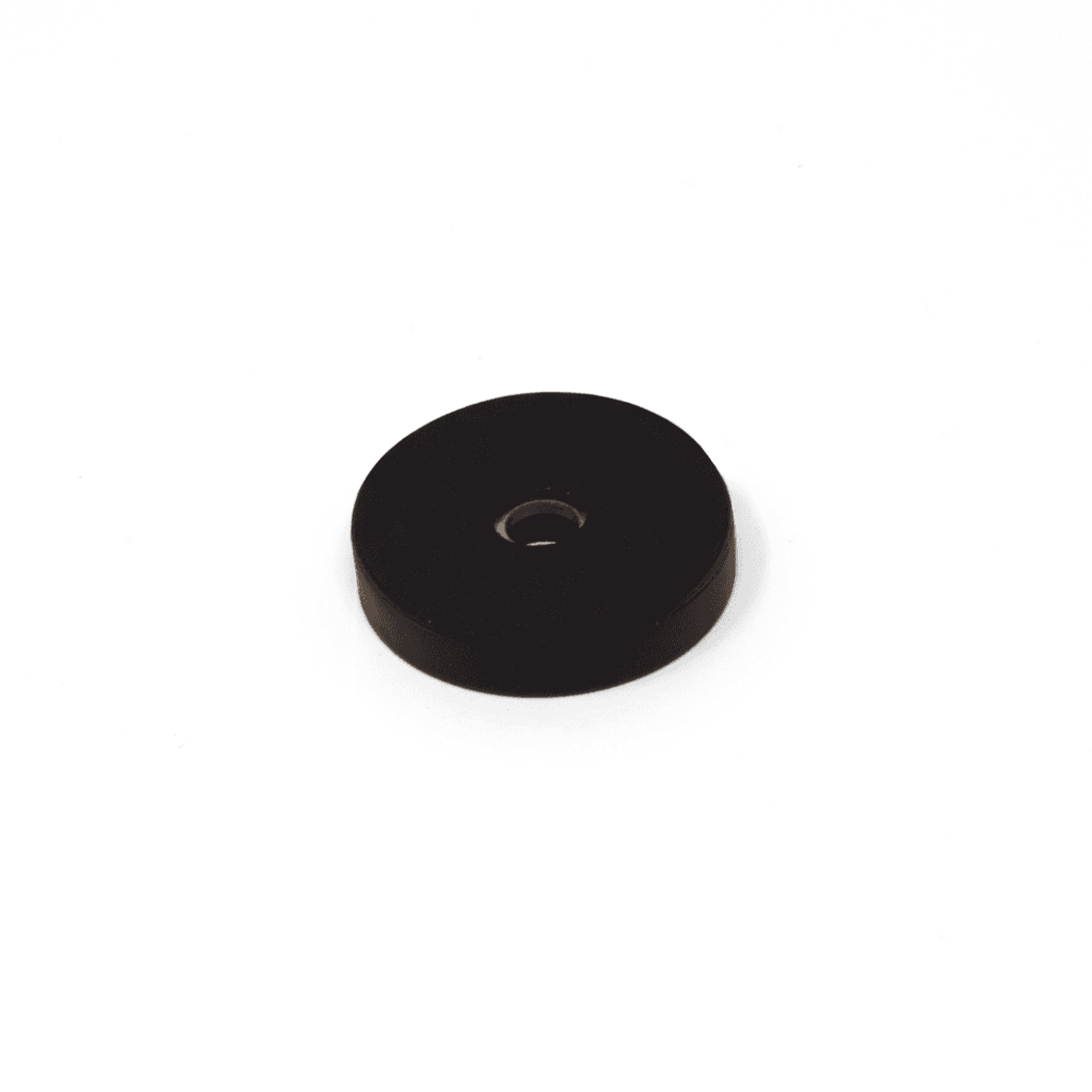

31mm dia x 6mm thick Rubber Coated N42 Neodymium "2 Pole" Pot Magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 31mm diameter x 4mm thick with a 6mm diameter counterbored hole for fixing.
- +/-0.1mm tolerance.
- Each magnet is counterbored on the magnetic face.
- Each magnet's has both its north and south poles on the magnetic face.
- Each magnet can support 9.7kg pull vertically from the magnetic face when in flush contact with a mild steel surface and 4.5kg in a shear position.
- Rubber-coated to increase friction and prevent marking other contact surfaces.
- Can be fixed in place with our 3mm diameter thread countersunk screws.
These rubber coated magnets are designed to support the maximum amount of weight possible in a shear position. A combination of the premium rubber coating and the unique pole arrangement with both poles on the magnetic face give these magnets their unbeatable clamping performance. However, as these magnets have both poles on one face they are not designed to attract or repel another magnet and should always be used against a steel surface.These magnets are ideal for securing items in a shear position or for holding doors and gates open.
- 31mm diameter x 4mm thick with a 6mm diameter counterbored hole for fixing.
- +/-0.1mm tolerance.
- Each magnet is counterbored on the magnetic face.
- Each magnet's has both its north and south poles on the magnetic face.
- Each magnet can support 9.7kg pull vertically from the magnetic face when in flush contact with a mild steel surface and 4.5kg in a shear position.
- Rubber-coated to increase friction and prevent marking other contact surfaces.
- Can be fixed in place with our 3mm diameter thread countersunk screws.
These rubber coated magnets are designed to support the maximum amount of weight possible in a shear position. A combination of the premium rubber coating and the unique pole arrangement with both poles on the magnetic face give these magnets their unbeatable clamping performance. However, as these magnets have both poles on one face they are not designed to attract or repel another magnet and should always be used against a steel surface.These magnets are ideal for securing items in a shear position or for holding doors and gates open.
