25mm dia x 20mm thick x 6mm hole Ultra High Performance N52 Neodymium Magnet - 28.5kg Pull
25mm dia x 20mm thick x 6mm hole Ultra High Performance N52 Neodymium Magnet - 28.5kg Pull
Code: F999N-N52-1

25mm dia x 20mm thick x 6mm hole Ultra High Performance N52 Neodymium Magnet - 28.5kg Pull

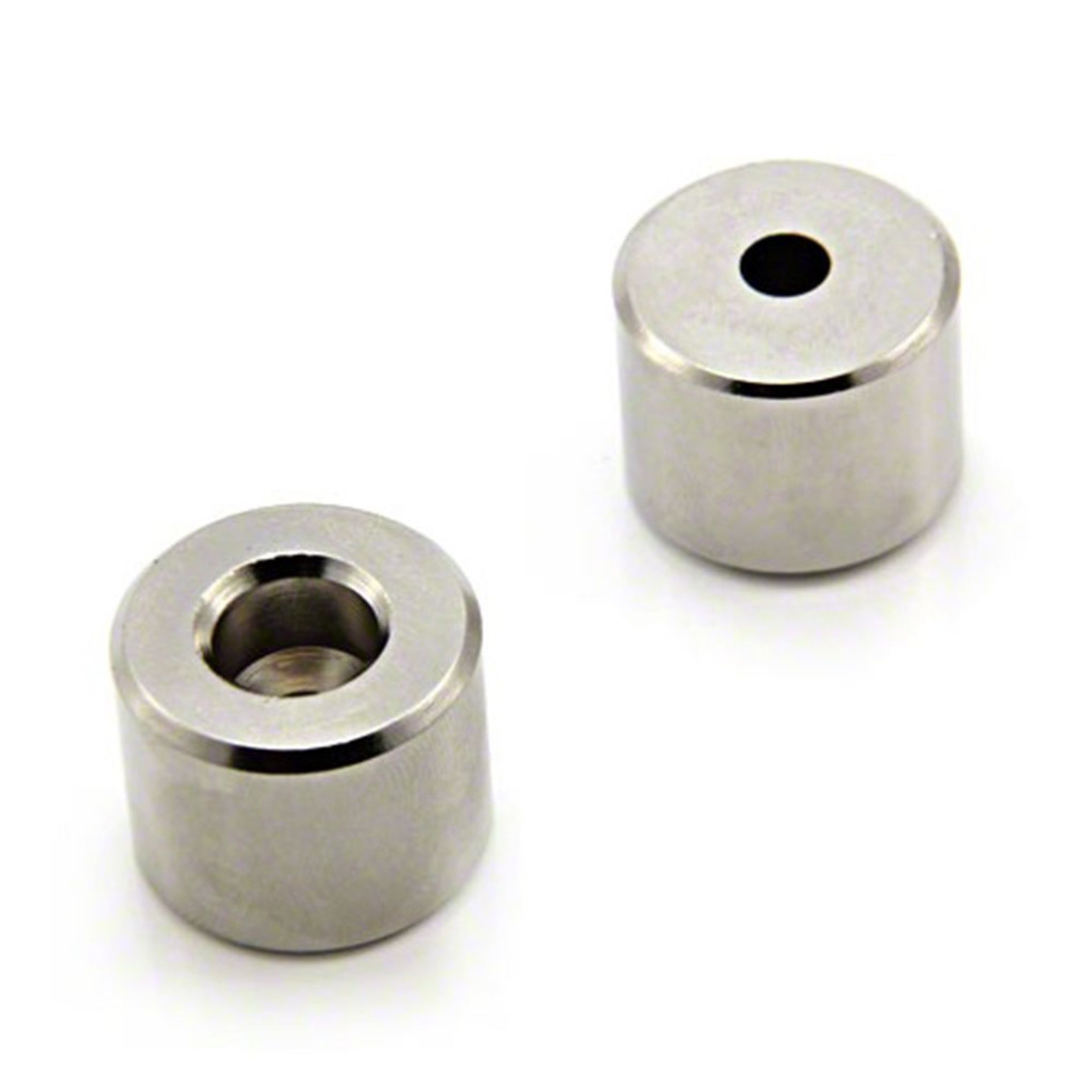

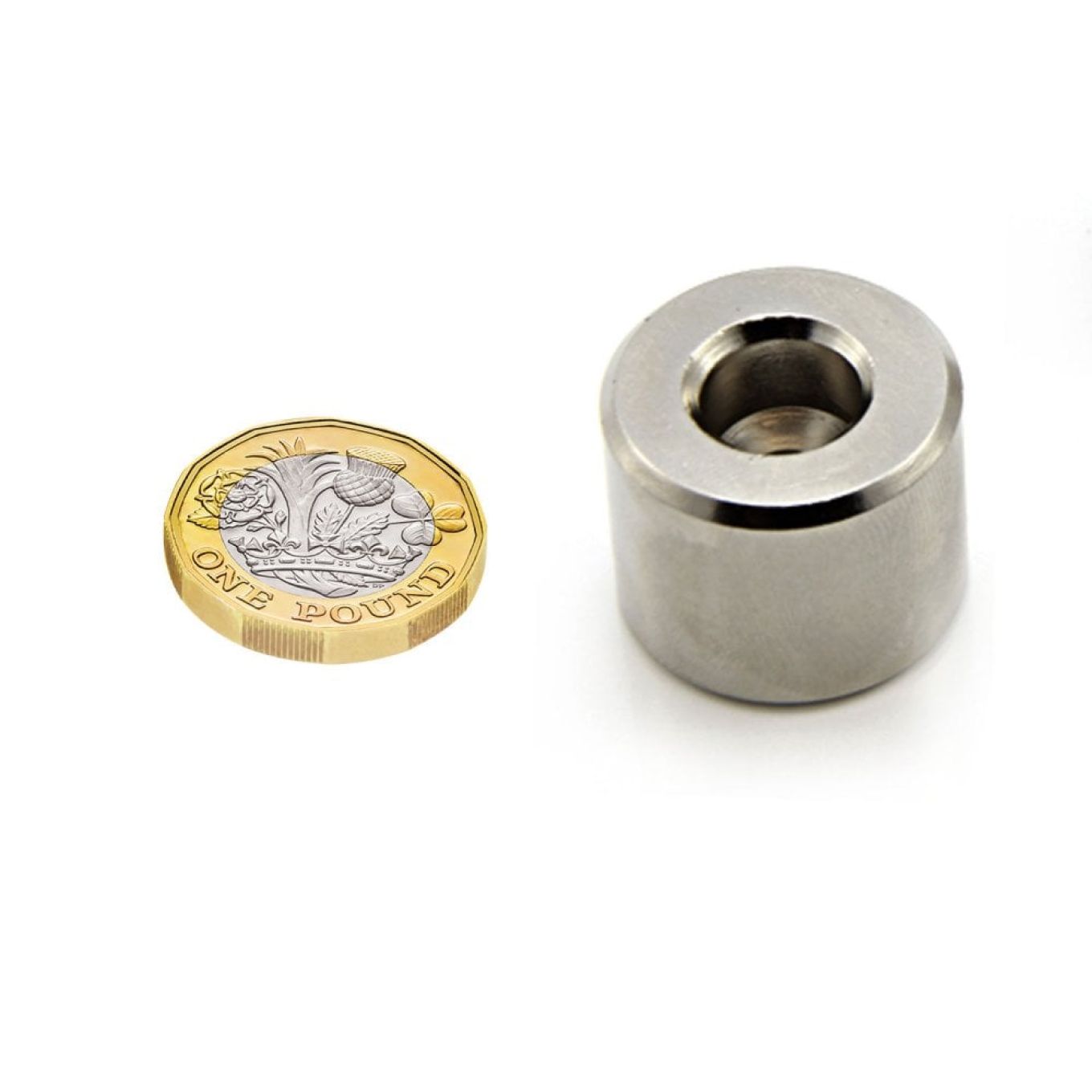

Super-strong Neodymium (N52) cylindrical magnet with counter-bore and central 6mm hole, available with either pole on the counter-bored face. These magnets are made from the strongest magnetic material available to buy.

Pack quantity 1: 1 Magnet

Select Pack Size
Select Polarity
£29.79 (Inc. VAT)£24.82 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

  • 25mm x 20mm
  • +/-0.1mm tolerance
  • 6mm counter-bored hole
  • South pole on counter-bored face
  • 28.5kg pull
  • Triple coated
  • Can be fixed in place with a M5 nut head screw

These magnets are so strong that they will wipe data from hard drives and are commonly used in large scale engineering projects or for recovery applications. Each magnet is capable of lifting 26kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness and has a triple coating of nickel, copper and nickel again to reduce corrosion. Two counter-bored magnets with opposite poles on the counter-bored face can be used to attract two surfaces or two opposing counter-bored magnets with the same pole on the counter-bored face can be used to create a damping, shock absorbing or repelling effect. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully. Also available with the north pole on the counter-bored face.
