25mm dia x 20mm thick x 6mm hole N42 Neodymium Magnet - 21.4kg Pull
25mm dia x 20mm thick x 6mm hole N42 Neodymium Magnet - 21.4kg Pull
Code: F999N-N42-1

25mm dia x 20mm thick x 6mm hole N42 Neodymium Magnet - 21.4kg Pull

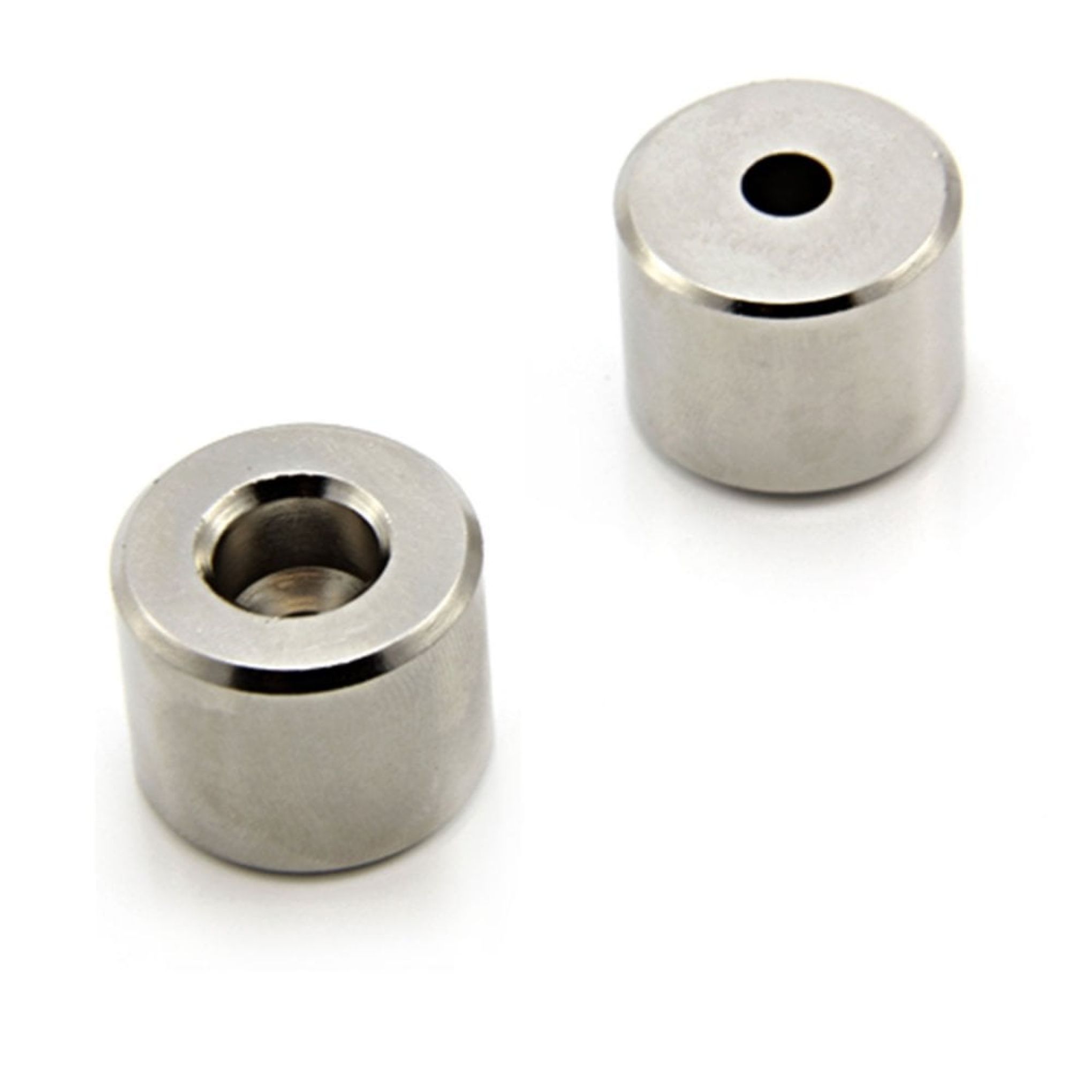

Small but strong Neodymium (N42) cylindrical magnet with counter-bore and central 6mm hole, available with either pole on the counter-bored face.

Pack quantity 1: 1 Magnet

Select Pack Size
Select Polarity
£16.17 (Inc. VAT)£16.17 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

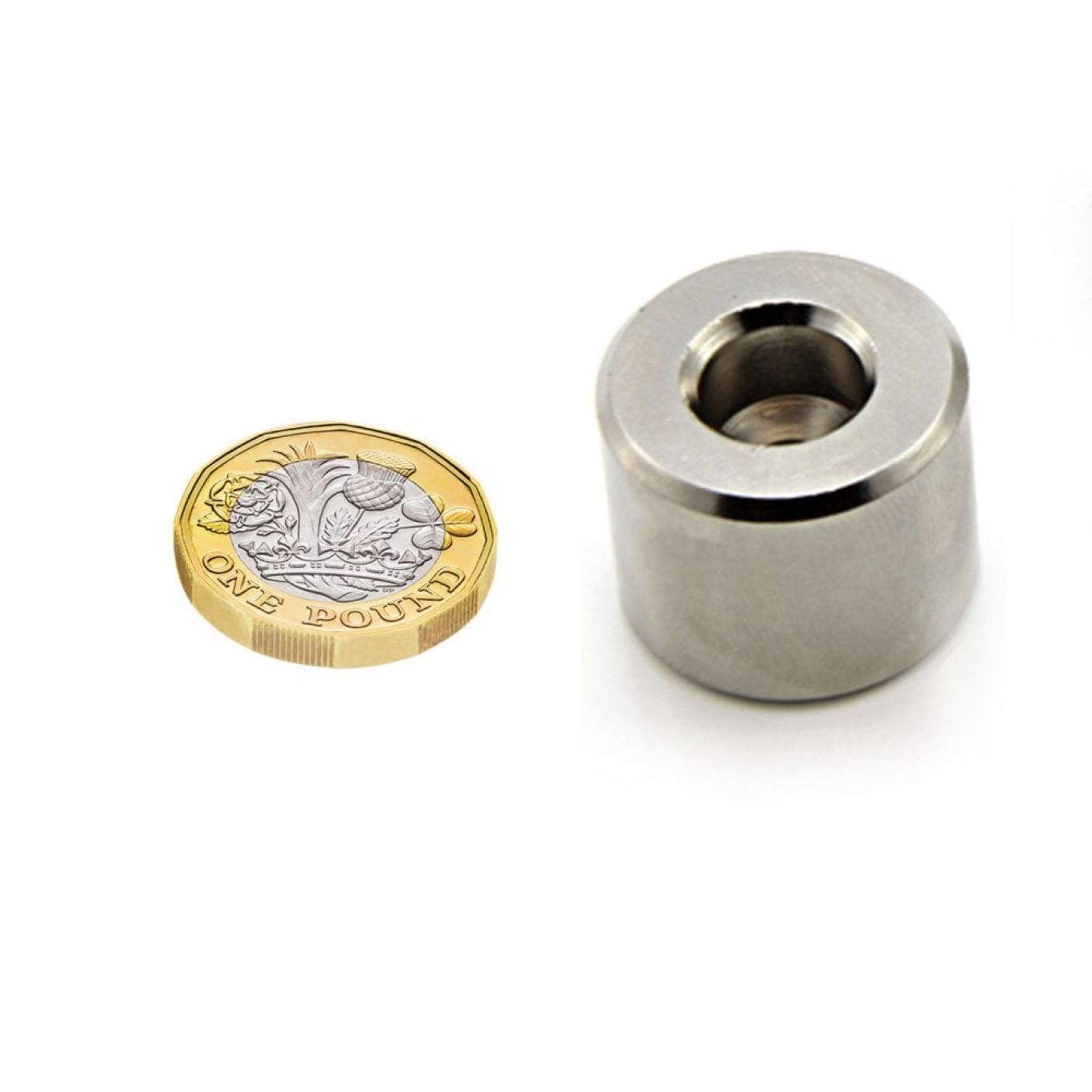

  • 25mm diameter x 20mm thick with a 6mm diameter counter-bored hole for fixing
  • +/-0.1mm tolerance
  • Each magnet has its south pole on the counter-bored face
  • Each magnet can support 21.4kg pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness
  • Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
  • Can be fixed in place with a M5 nut head screw

Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, counter-bored magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Our 25mm x 20mm counter-bored circular magnets are the largest in our range and provide an astonishing 21.4kg magnetic pull. Counter-bored magnets with opposite poles on the counter-bored face can be used to attract two surfaces or two opposing counter-bored magnets with the same pole on the counter-bored face can be used to create a damping, shock absorbing or repelling effect. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully. Also available with the north pole on the counter-bored face.
