20mm dia x 3mm thick x 3.6mm c/s hole N42 Neodymium Magnet - 4.5kg Pull
20mm dia x 3mm thick x 3.6mm c/s hole N42 Neodymium Magnet - 4.5kg Pull
Code: F406N-2

20mm dia x 3mm thick x 3.6mm c/s hole N42 Neodymium Magnet - 4.5kg Pull

Thin, countersunk neodymium (N42) magnets, ideal for DIY and manufacturing and available with either pole on the magnetic face.

Pack quantity 2: 2 Countersunk magnets

Explore how countersunk magnets can help your application in our handy magnet & application guide!

Select Pack Size
Select Polarity
£5.00 (Inc. VAT)£5.00 (Ex. VAT)
In Stock
Contact Us
Ask A Question

Please fill out the following form to Ask a Question about this product:

Email A Friend

Please fill out the following form to Tell a Friend about this product:

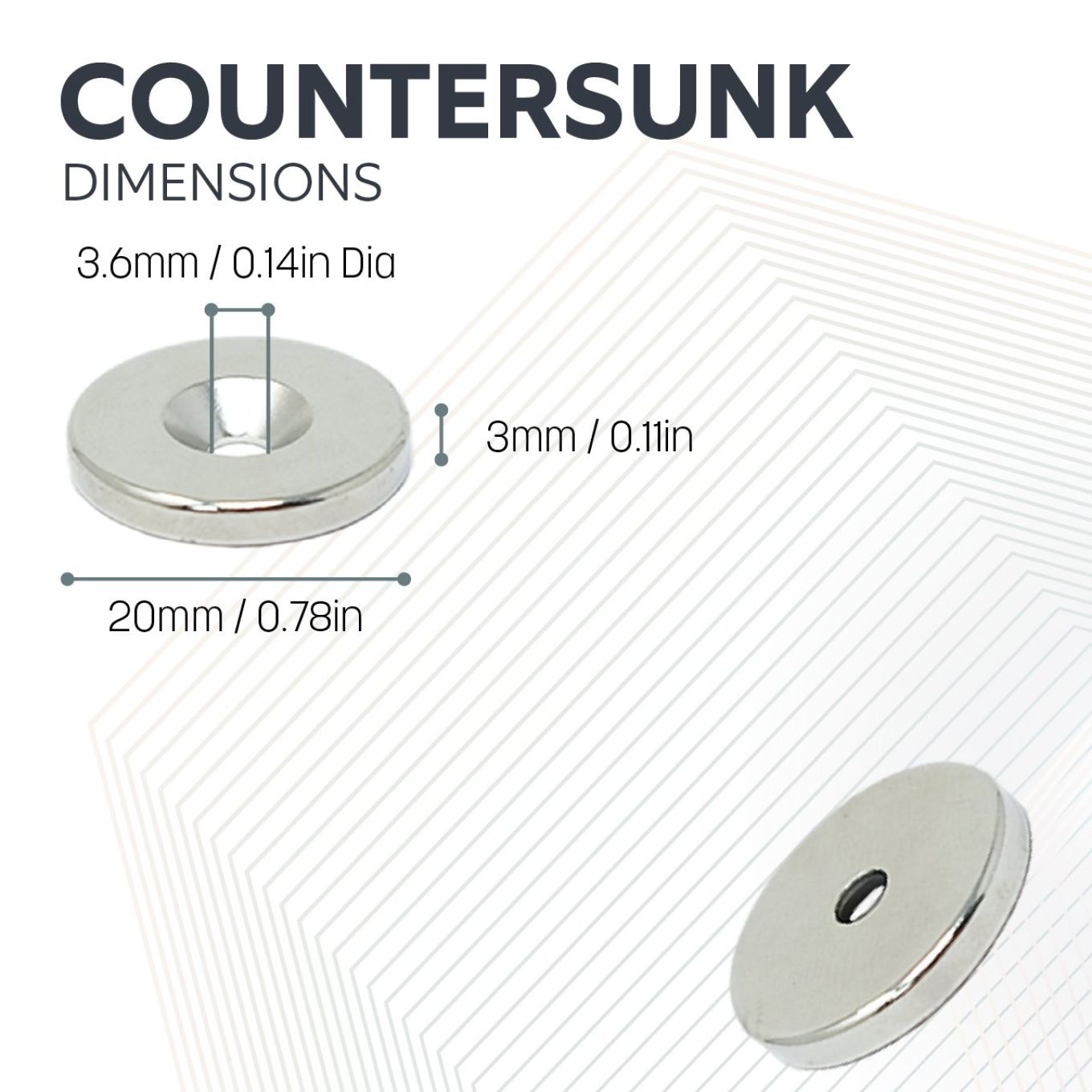

  • 20mm diameter x 3mm thick with a 3.6mm diameter countersunk hole for fixing
  • +/- 0.1mm tolerance
  • Each magnet has its north pole on the countersunk face
  • Each magnet can support 4.5kg pull vertically from the magnetic face when in flush contact with a mild steel surface
  • Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
  • Can be fixed in place with 3mm diameter countersunk screws

These versatile, thin countersunk magnets from first4magnets are ideal for creating discreet magnetic cupboard door catches or for holding removable bath panels in place plus many other uses. Although just 3mm thick, each magnet is capable of supporting 4.5kg in a vertical position or 0.9kg in a shear position when in direct contact with another magnet or a steel surface. They are available with either pole on the magnetic face so two of these can be used on opposing surfaces to attract. For the perfect finish, countersink these magnets into a wooden surface and screw in place using a stainless steel screw.
