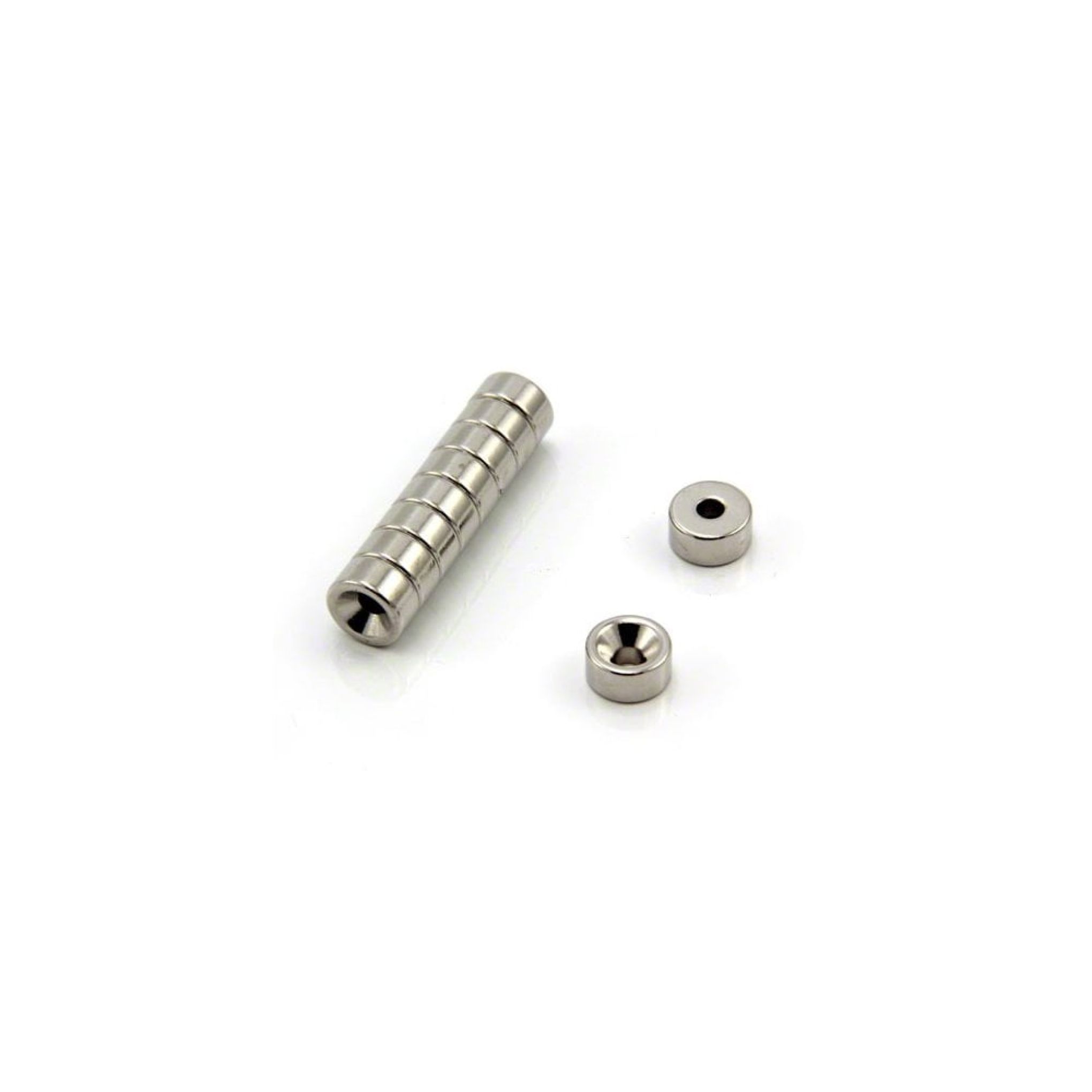

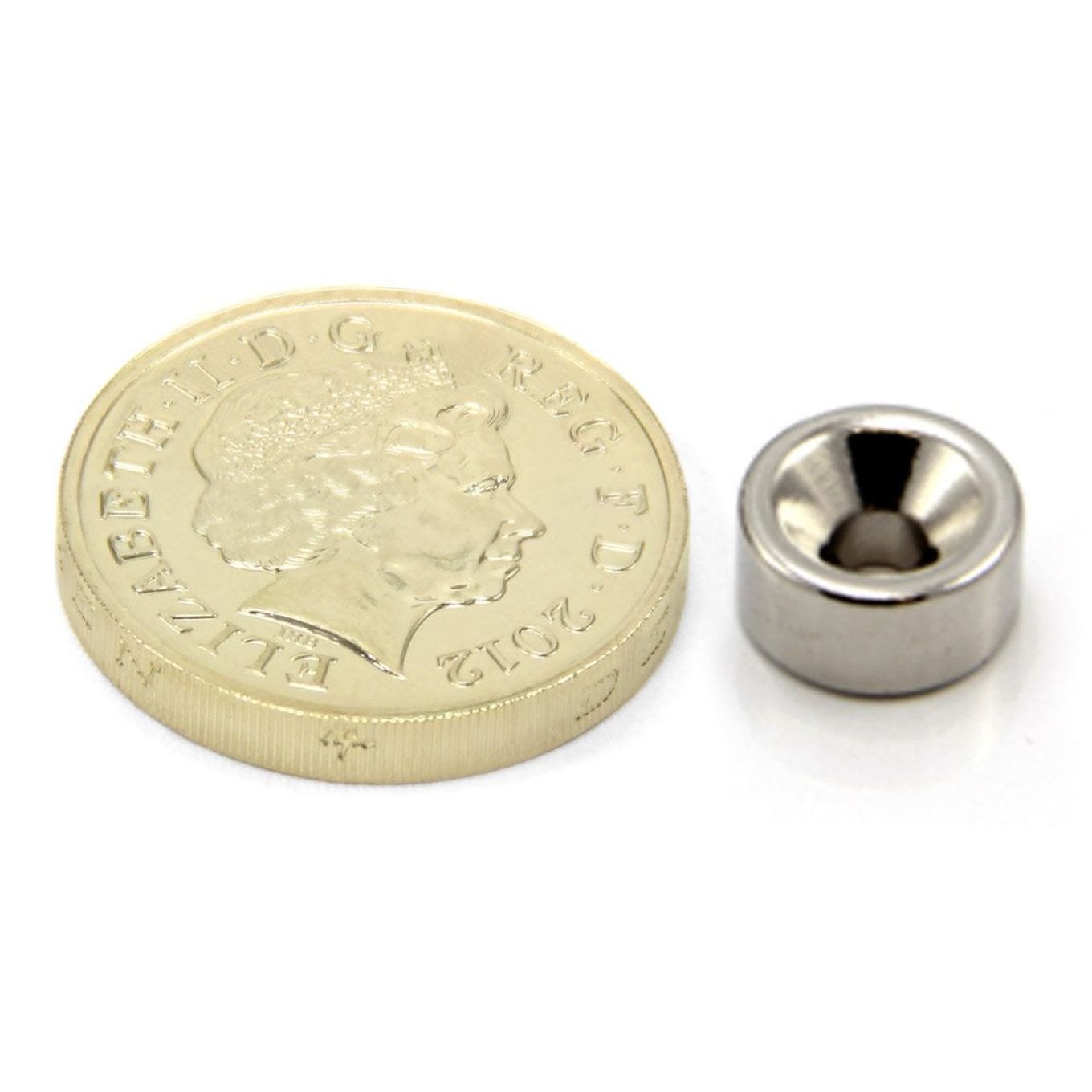

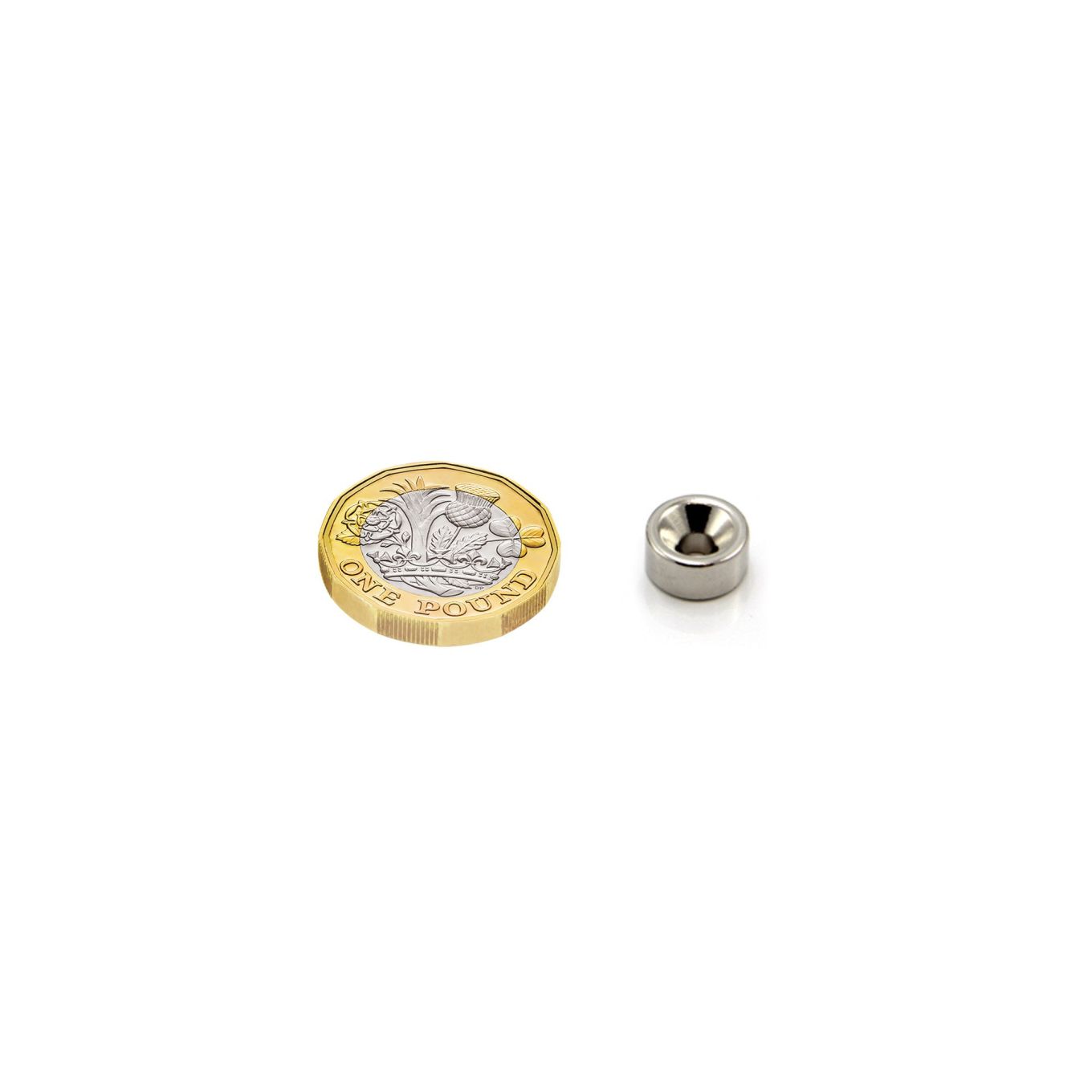

10mm dia x 5mm thick x 3.2mm c/sink Samarium Cobalt Magnet - 1.4kg Pull
High-performance countersunk samarium cobalt (Sm2Co17) magnet available with either pole on the countersunk face. With a maximum operating temperature of 300oC these magnets are perfect for high-temperature applications.
Pack quantity 4: 4 Countersunk magnets
Explore how countersunk magnets can help your application in our handy magnet & application guide!
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 10mm diameter x 5mm thick with a 3.2mm diameter countersunk hole for fixing
- +/-0.1mm tolerance
- Each magnet can support 1.4kg pull vertically from the magnetic face when in flush contact with a mild steel surface
- Resistant to corrosion and demagnetisation
- Can be fixed in place with our
Samarium cobalt is a type of rare-earth magnet that has the ability to withstand and operate in high temperatures, however they are not as powerful as super-strong Neodymium magnets. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors.
- 10mm diameter x 5mm thick with a 3.2mm diameter countersunk hole for fixing
- +/-0.1mm tolerance
- Each magnet can support 1.4kg pull vertically from the magnetic face when in flush contact with a mild steel surface
- Resistant to corrosion and demagnetisation
- Can be fixed in place with our
Samarium cobalt is a type of rare-earth magnet that has the ability to withstand and operate in high temperatures, however they are not as powerful as super-strong Neodymium magnets. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors.
